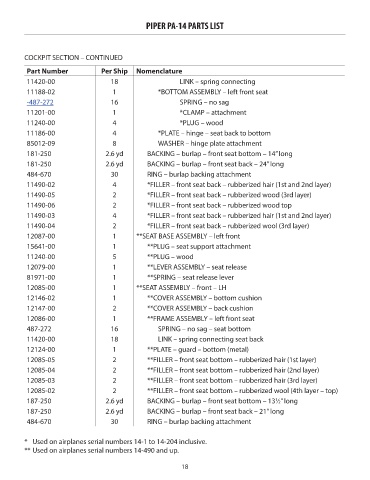

PIPER PA-14 PARTS LIST

COCKPIT SECTION – CONTINUED

Part Number Per Ship Nomenclature Price
11420-00 18 LINK – spring connecting NM!
11188-02 1 *BOTTOM ASSEMBLY – left front seat NM!
-487-272 16 SPRING – no sag 42.5
11201-00 1 *CLAMP – attachment NM!
11240-00 4 *PLUG – wood NM!
11186-00 4 *PLATE – hinge – seat back to bottom NM!

85012-09 8 WASHER – hinge plate attachment NM!
181-250 2.6 yd BACKING – burlap – front seat bottom – 14” long NM!
181-250 2.6 yd BACKING – burlap – front seat back – 24” long NM!
484-670 30 RING – burlap backing attachment NM!
11490-02 4 *FILLER – front seat back – rubberized hair (1st and 2nd layer) NM!
11490-05 2 *FILLER – front seat back – rubberized wood (3rd layer) NM!
11490-06 2 *FILLER – front seat back – rubberized wood top NM!

11490-03 4 *FILLER – front seat back – rubberized hair (1st and 2nd layer) NM!
11490-04 2 *FILLER – front seat back – rubberized wool (3rd layer) NM!
12087-00 1 **SEAT BASE ASSEMBLY – left front NM!
15641-00 1 **PLUG – seat support attachment NM!
11240-00 5 **PLUG – wood NM!
12079-00 1 **LEVER ASSEMBLY – seat release NM!
81971-00 1 **SPRING – seat release lever NM!
12085-00 1 **SEAT ASSEMBLY – front – LH NM!
12146-02 1 **COVER ASSEMBLY – bottom cushion NM!

12147-00 2 **COVER ASSEMBLY – back cushion NM!
12086-00 1 **FRAME ASSEMBLY – left front seat NM!
487-272 16 SPRING – no sag – seat bottom NM!
11420-00 18 LINK – spring connecting seat back NM!
12124-00 1 **PLATE – guard – bottom (metal) NM!
12085-05 2 **FILLER – front seat bottom – rubberized hair (1st layer) NM!
12085-04 2 **FILLER – front seat bottom – rubberized hair (2nd layer) NM!

12085-03 2 **FILLER – front seat bottom – rubberized hair (3rd layer) NM!
12085-02 2 **FILLER – front seat bottom – rubberized wool (4th layer – top) NM!
187-250 2.6 yd BACKING – burlap – front seat bottom – 13 ⁄2” long NM!
1
187-250 2.6 yd BACKING – burlap – front seat back – 21” long NM!
484-670 30 RING – burlap backing attachment NM!

* Used on airplanes serial numbers 14-1 to 14-204 inclusive.
** Used on airplanes serial numbers 14-490 and up.
