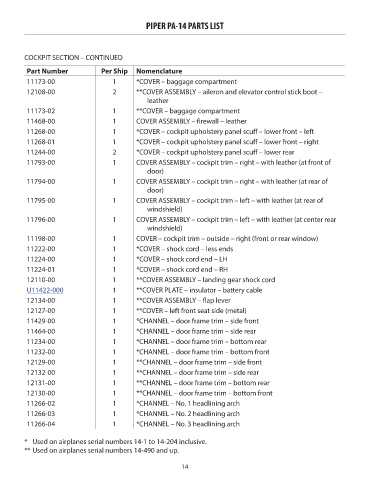

PIPER PA-14 PARTS LIST

COCKPIT SECTION – CONTINUED

Part Number Per Ship Nomenclature Price
11173-00 1 *COVER – baggage compartment NM!
12108-00 2 **COVER ASSEMBLY – aileron and elevator control stick boot – NM!
leather
11173-02 1 **COVER – baggage compartment NM!
11468-00 1 COVER ASSEMBLY – firewall – leather NM!
11268-00 1 *COVER – cockpit upholstery panel scuff – lower front – left NM!
11268-01 1 *COVER – cockpit upholstery panel scuff – lower front – right NM!
11244-00 2 *COVER – cockpit upholstery panel scuff – lower rear NM!
11793-00 1 COVER ASSEMBLY – cockpit trim – right – with leather (at front of NM!
door)
11794-00 1 COVER ASSEMBLY – cockpit trim – right – with leather (at rear of NM!
door)
11795-00 1 COVER ASSEMBLY – cockpit trim – left – with leather (at rear of NM!
windshield)
11796-00 1 COVER ASSEMBLY – cockpit trim – left – with leather (at center rear NM!
windshield)
11198-00 1 COVER – cockpit trim – outside – right (front or rear window) NM!
11222-00 1 *COVER – shock cord – less ends NM!
11224-00 1 *COVER – shock cord end – LH NM!

11224-01 1 *COVER – shock cord end – RH NM!
12110-00 1 **COVER ASSEMBLY – landing gear shock cord NM!
U11422-000 1 **COVER PLATE – insulator – battery cable 44.76
12134-00 1 **COVER ASSEMBLY – flap lever NM!
12127-00 1 **COVER – left front seat side (metal) NM!
11429-00 1 *CHANNEL – door frame trim – side front NM!
11464-00 1 *CHANNEL – door frame trim – side rear NM!

11234-00 1 *CHANNEL – door frame trim – bottom rear NM!
11232-00 1 *CHANNEL – door frame trim – bottom front NM!
12129-00 1 **CHANNEL – door frame trim – side front NM!
12132-00 1 **CHANNEL – door frame trim – side rear NM!
12131-00 1 **CHANNEL – door frame trim – bottom rear NM!
12130-00 1 **CHANNEL – door frame trim – bottom front NM!
11266-02 1 *CHANNEL – No. 1 headlining arch NM!
11266-03 1 *CHANNEL – No. 2 headlining arch NM!
11266-04 1 *CHANNEL – No. 3 headlining arch NM!

* Used on airplanes serial numbers 14-1 to 14-204 inclusive.
** Used on airplanes serial numbers 14-490 and up.

14
