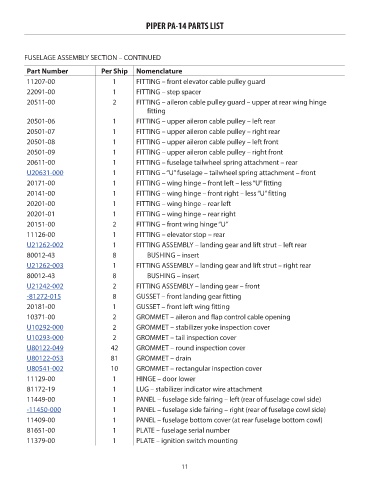

PIPER PA-14 PARTS LIST
FUSELAGE ASSEMBLY SECTION – CONTINUED
Part Number Per Ship Nomenclature Price
11207-00 1 FITTING – front elevator cable pulley guard NM!
22091-00 1 FITTING – step spacer NM!
20511-00 2 FITTING – aileron cable pulley guard – upper at rear wing hinge NM!
fitting
20501-06 1 FITTING – upper aileron cable pulley – left rear NM!
20501-07 1 FITTING – upper aileron cable pulley – right rear NM!
20501-08 1 FITTING – upper aileron cable pulley – left front NM!
20501-09 1 FITTING – upper aileron cable pulley – right front NM!
20611-00 1 FITTING – fuselage tailwheel spring attachment – rear NM!
U20631-000 1 FITTING – “U” fuselage – tailwheel spring attachment – front 43.69
20171-00 1 FITTING – wing hinge – front left – less “U” fitting NM!
20141-00 1 FITTING – wing hinge – front right – less “U” fitting NM!
20201-00 1 FITTING – wing hinge – rear left NM!
20201-01 1 FITTING – wing hinge – rear right NM!
20151-00 2 FITTING – front wing hinge “U” NM!
11126-00 1 FITTING – elevator stop – rear NM!
U21262-002 1 FITTING ASSEMBLY – landing gear and lift strut – left rear 256.45
80012-43 8 BUSHING – insert NM!
U21262-003 1 FITTING ASSEMBLY – landing gear and lift strut – right rear 266.72
80012-43 8 BUSHING – insert NM!
U21242-002 2 FITTING ASSEMBLY – landing gear – front 222.06
-81272-015 8 GUSSET – front landing gear fitting 5.57
20181-00 1 GUSSET – front left wing fitting NM!
10371-00 2 GROMMET – aileron and flap control cable opening NM!
U10292-000 2 GROMMET – stabilizer yoke inspection cover 13
U10293-000 2 GROMMET – tail inspection cover 10.71
U80122-049 42 GROMMET – round inspection cover 5.7
U80122-053 81 GROMMET – drain 4.09
U80541-002 10 GROMMET – rectangular inspection cover 14.81
11129-00 1 HINGE – door lower NM!
81172-19 1 LUG – stabilizer indicator wire attachment NM!
11449-00 1 PANEL – fuselage side fairing – left (rear of fuselage cowl side) NM!
-11450-000 1 PANEL – fuselage side fairing – right (rear of fuselage cowl side) 42.31
11409-00 1 PANEL – fuselage bottom cover (at rear fuselage bottom cowl) NM!
81651-00 1 PLATE – fuselage serial number NM!
11379-00 1 PLATE – ignition switch mounting NM!
