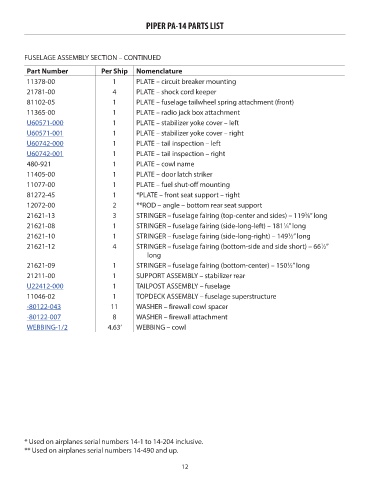

PIPER PA-14 PARTS LIST

FUSELAGE ASSEMBLY SECTION – CONTINUED

Part Number Per Ship Nomenclature Price
11378-00 1 PLATE – circuit breaker mounting NM!
21781-00 4 PLATE – shock cord keeper NM!
81102-05 1 PLATE – fuselage tailwheel spring attachment (front) NM!
11365-00 1 PLATE – radio jack box attachment NM!
U60571-000 1 PLATE – stabilizer yoke cover – left 26.73
U60571-001 1 PLATE – stabilizer yoke cover – right 26.73

U60742-000 1 PLATE – tail inspection – left 38.43
U60742-001 1 PLATE – tail inspection – right 38.43
480-921 1 PLATE – cowl name NM!
11405-00 1 PLATE – door latch striker NM!
11077-00 1 PLATE – fuel shut-off mounting NM!
81272-45 1 *PLATE – front seat support – right NM!
12072-00 2 **ROD – angle – bottom rear seat support NM!

21621-13 3 STRINGER – fuselage fairing (top-center and sides) – 119 ⁄8” long NM!
3
21621-08 1 STRINGER – fuselage fairing (side-long-left) – 181 ⁄4” long NM!
1
21621-10 1 STRINGER – fuselage fairing (side-long-right) – 149 ⁄2” long NM!
1
21621-12 4 STRINGER – fuselage fairing (bottom-side and side short) – 66 ⁄2” NM!
1
long
21621-09 1 STRINGER – fuselage fairing (bottom-center) – 150 ⁄2” long NM!
1
21211-00 1 SUPPORT ASSEMBLY – stabilizer rear NM!
U22412-000 1 TAILPOST ASSEMBLY – fuselage 176.36
11046-02 1 TOPDECK ASSEMBLY – fuselage superstructure NM!
-80122-043 11 WASHER – firewall cowl spacer 4.51
-80122-007 8 WASHER – firewall attachment 6.11
WEBBING-1/2 4.63’ WEBBING – cowl 0.8

* Used on airplanes serial numbers 14-1 to 14-204 inclusive.
** Used on airplanes serial numbers 14-490 and up.

12
