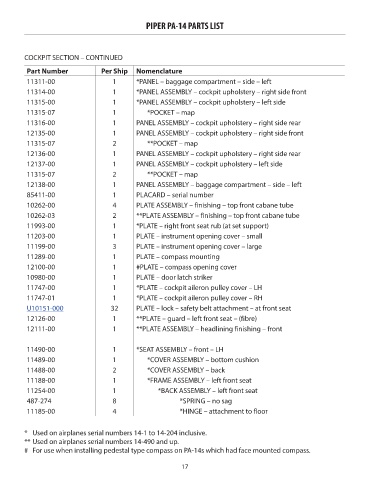

PIPER PA-14 PARTS LIST
COCKPIT SECTION – CONTINUED
Part Number Per Ship Nomenclature Price
11311-00 1 *PANEL – baggage compartment – side – left NM!
11314-00 1 *PANEL ASSEMBLY – cockpit upholstery – right side front NM!
11315-00 1 *PANEL ASSEMBLY – cockpit upholstery – left side NM!
11315-07 1 *POCKET – map NM!
11316-00 1 PANEL ASSEMBLY – cockpit upholstery – right side rear NM!
12135-00 1 PANEL ASSEMBLY – cockpit upholstery – right side front NM!
11315-07 2 **POCKET – map NM!
12136-00 1 PANEL ASSEMBLY – cockpit upholstery – right side rear NM!
12137-00 1 PANEL ASSEMBLY – cockpit upholstery – left side NM!
11315-07 2 **POCKET – map NM!
12138-00 1 PANEL ASSEMBLY – baggage compartment – side – left NM!
85411-00 1 PLACARD – serial number NM!
10262-00 4 PLATE ASSEMBLY – finishing – top front cabane tube NM!
10262-03 2 **PLATE ASSEMBLY – finishing – top front cabane tube NM!
11993-00 1 *PLATE – right front seat rub (at set support) NM!
11203-00 1 PLATE – instrument opening cover – small NM!
11199-00 3 PLATE – instrument opening cover – large NM!
11289-00 1 PLATE – compass mounting NM!
12100-00 1 #PLATE – compass opening cover NM!
10980-00 1 PLATE – door latch striker NM!
11747-00 1 *PLATE – cockpit aileron pulley cover – LH NM!
11747-01 1 *PLATE – cockpit aileron pulley cover – RH NM!
U10151-000 32 PLATE – lock – safety belt attachment – at front seat 3.08
12126-00 1 **PLATE – guard – left front seat – (fibre) NM!
12111-00 1 **PLATE ASSEMBLY – headlining finishing – front NM!
11490-00 1 *SEAT ASSEMBLY – front – LH NM!
11489-00 1 *COVER ASSEMBLY – bottom cushion NM!
11488-00 2 *COVER ASSEMBLY – back NM!
11188-00 1 *FRAME ASSEMBLY – left front seat NM!
11254-00 1 *BACK ASSEMBLY – left front seat NM!
487-274 8 *SPRING – no sag NM!
11185-00 4 *HINGE – attachment to floor NM!
* Used on airplanes serial numbers 14-1 to 14-204 inclusive.
** Used on airplanes serial numbers 14-490 and up.
# For use when installing pedestal type compass on PA-14s which had face mounted compass.
