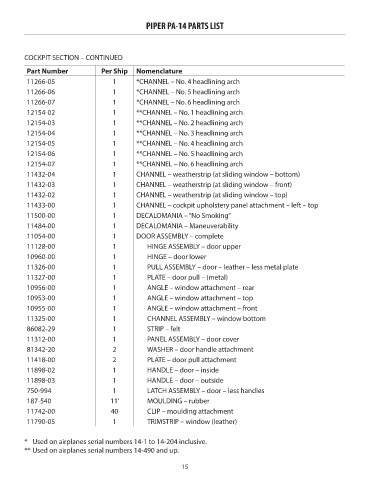

PIPER PA-14 PARTS LIST

COCKPIT SECTION – CONTINUED

Part Number Per Ship Nomenclature Price
11266-05 1 *CHANNEL – No. 4 headlining arch NM!
11266-06 1 *CHANNEL – No. 5 headlining arch NM!
11266-07 1 *CHANNEL – No. 6 headlining arch NM!
12154-02 1 **CHANNEL – No. 1 headlining arch NM!
12154-03 1 **CHANNEL – No. 2 headlining arch NM!
12154-04 1 **CHANNEL – No. 3 headlining arch NM!

12154-05 1 **CHANNEL – No. 4 headlining arch NM!
12154-06 1 **CHANNEL – No. 5 headlining arch NM!
12154-07 1 **CHANNEL – No. 6 headlining arch NM!
11432-04 1 CHANNEL – weatherstrip (at sliding window – bottom) NM!
11432-03 1 CHANNEL – weatherstrip (at sliding window – front) NM!
11432-02 1 CHANNEL – weatherstrip (at sliding window – top) NM!
11433-00 1 CHANNEL – cockpit upholstery panel attachment – left – top NM!

11500-00 1 DECALOMANIA – “No Smoking” NM!
11484-00 1 DECALOMANIA – Maneuverability NM!
11054-00 1 DOOR ASSEMBLY – complete NM!
11128-00 1 HINGE ASSEMBLY – door upper NM!
10960-00 1 HINGE – door lower NM!
11326-00 1 PULL ASSEMBLY – door – leather – less metal plate NM!
11327-00 1 PLATE – door pull – (metal) NM!
10956-00 1 ANGLE – window attachment – rear NM!
10953-00 1 ANGLE – window attachment – top NM!

10955-00 1 ANGLE – window attachment – front NM!
11325-00 1 CHANNEL ASSEMBLY – window bottom NM!
86082-29 1 STRIP – felt NM!
11312-00 1 PANEL ASSEMBLY – door cover NM!
81342-20 2 WASHER – door handle attachment NM!
11418-00 2 PLATE – door pull attachment NM!
11898-02 1 HANDLE – door – inside NM!

11898-03 1 HANDLE – door – outside NM!
750-994 1 LATCH ASSEMBLY – door – less handles NM!
187-540 11’ MOULDING – rubber NM!
11742-00 40 CLIP – moulding attachment NM!
11790-05 1 TRIMSTRIP – window (leather) NM!

* Used on airplanes serial numbers 14-1 to 14-204 inclusive.
** Used on airplanes serial numbers 14-490 and up.

15
