Page 23 - Piper PA-14 Family Cruiser Parts List
P. 23

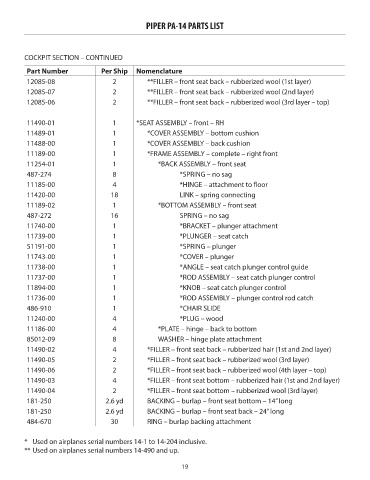

PIPER PA-14 PARTS LIST
COCKPIT SECTION – CONTINUED
Part Number Per Ship Nomenclature Price
12085-08 2 **FILLER – front seat back – rubberized wool (1st layer) NM!
12085-07 2 **FILLER – front seat back – rubberized wool (2nd layer) NM!
12085-06 2 **FILLER – front seat back – rubberized wool (3rd layer – top) NM!
11490-01 1 *SEAT ASSEMBLY – front – RH NM!
11489-01 1 *COVER ASSEMBLY – bottom cushion NM!
11488-00 1 *COVER ASSEMBLY – back cushion NM!
11189-00 1 *FRAME ASSEMBLY – complete – right front NM!
11254-01 1 *BACK ASSEMBLY – front seat NM!
487-274 8 *SPRING – no sag NM!
11185-00 4 *HINGE – attachment to floor NM!
11420-00 18 LINK – spring connecting NM!
11189-02 1 *BOTTOM ASSEMBLY – front seat NM!
487-272 16 SPRING – no sag NM!
11740-00 1 *BRACKET – plunger attachment NM!
11739-00 1 *PLUNGER – seat catch NM!
51191-00 1 *SPRING – plunger NM!
11743-00 1 *COVER – plunger NM!
11738-00 1 *ANGLE – seat catch plunger control guide NM!
11737-00 1 *ROD ASSEMBLY – seat catch plunger control NM!
11894-00 1 *KNOB – seat catch plunger control NM!
11736-00 1 *ROD ASSEMBLY – plunger control rod catch NM!
486-910 1 *CHAIR SLIDE NM!
11240-00 4 *PLUG – wood NM!
11186-00 4 *PLATE – hinge – back to bottom NM!
85012-09 8 WASHER – hinge plate attachment NM!
11490-02 4 *FILLER – front seat back – rubberized hair (1st and 2nd layer) NM!
11490-05 2 *FILLER – front seat back – rubberized wool (3rd layer) NM!
11490-06 2 *FILLER – front seat back – rubberized wool (4th layer – top) NM!
11490-03 4 *FILLER – front seat bottom – rubberized hair (1st and 2nd layer) NM!
11490-04 2 *FILLER – front seat bottom – rubberized wool (3rd layer) NM!
181-250 2.6 yd BACKING – burlap – front seat bottom – 14” long NM!
181-250 2.6 yd BACKING – burlap – front seat back – 24” long NM!
484-670 30 RING – burlap backing attachment NM!
* Used on airplanes serial numbers 14-1 to 14-204 inclusive.
** Used on airplanes serial numbers 14-490 and up.
