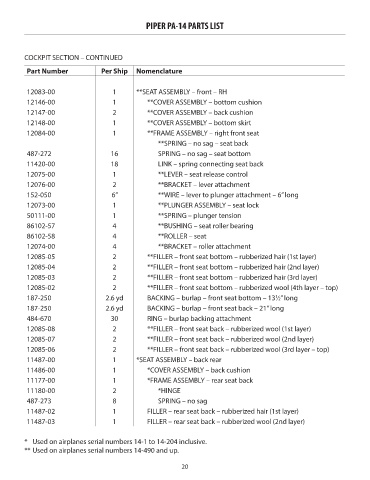

Page 24 - Piper PA-14 Family Cruiser Parts List

PIPER PA-14 PARTS LIST

COCKPIT SECTION – CONTINUED

Part Number Per Ship Nomenclature Price

12083-00 1 **SEAT ASSEMBLY – front – RH NM!
12146-00 1 **COVER ASSEMBLY – bottom cushion NM!
12147-00 2 **COVER ASSEMBLY – back cushion NM!
12148-00 1 **COVER ASSEMBLY – bottom skirt NM!
12084-00 1 **FRAME ASSEMBLY – right front seat NM!

**SPRING – no sag – seat back x
487-272 16 SPRING – no sag – seat bottom NM!
11420-00 18 LINK – spring connecting seat back NM!
12075-00 1 **LEVER – seat release control NM!
12076-00 2 **BRACKET – lever attachment NM!
152-050 6” **WIRE – lever to plunger attachment – 6” long NM!
12073-00 1 **PLUNGER ASSEMBLY – seat lock NM!

50111-00 1 **SPRING – plunger tension NM!
86102-57 4 **BUSHING – seat roller bearing NM!
86102-58 4 **ROLLER – seat NM!
12074-00 4 **BRACKET – roller attachment NM!
12085-05 2 **FILLER – front seat bottom – rubberized hair (1st layer) NM!
12085-04 2 **FILLER – front seat bottom – rubberized hair (2nd layer) NM!
12085-03 2 **FILLER – front seat bottom – rubberized hair (3rd layer) NM!
12085-02 2 **FILLER – front seat bottom – rubberized wool (4th layer – top) NM!
187-250 2.6 yd BACKING – burlap – front seat bottom – 13 ⁄2” long NM!
1
187-250 2.6 yd BACKING – burlap – front seat back – 21” long NM!
484-670 30 RING – burlap backing attachment
12085-08 2 **FILLER – front seat back – rubberized wool (1st layer) NM!
12085-07 2 **FILLER – front seat back – rubberized wool (2nd layer) NM!
12085-06 2 **FILLER – front seat back – rubberized wool (3rd layer – top) NM!
11487-00 1 *SEAT ASSEMBLY – back rear NM!
11486-00 1 *COVER ASSEMBLY – back cushion NM!

11177-00 1 *FRAME ASSEMBLY – rear seat back NM!
11180-00 2 *HINGE NM!
487-273 8 SPRING – no sag NM!
11487-02 1 FILLER – rear seat back – rubberized hair (1st layer) NM!
11487-03 1 FILLER – rear seat back – rubberized wool (2nd layer) NM!

* Used on airplanes serial numbers 14-1 to 14-204 inclusive.
** Used on airplanes serial numbers 14-490 and up.
