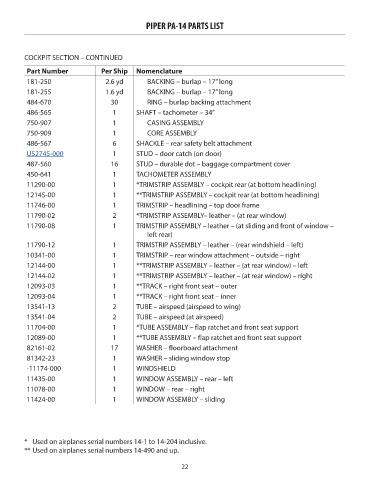

PIPER PA-14 PARTS LIST

COCKPIT SECTION – CONTINUED

Part Number Per Ship Nomenclature Price
181-250 2.6 yd BACKING – burlap – 17” long NM!
181-255 1.6 yd BACKING – burlap – 17” long NM!
484-670 30 RING – burlap backing attachment NM!
486-565 1 SHAFT – tachometer – 34” NM!
750-907 1 CASING ASSEMBLY NM!
750-909 1 CORE ASSEMBLY NM!

486-567 6 SHACKLE – rear safety belt attachment NM!
U52745-000 1 STUD – door catch (on door) 5.07
487-560 16 STUD – durable dot – baggage compartment cover NM!
450-641 1 TACHOMETER ASSEMBLY NM!
11290-00 1 *TRIMSTRIP ASSEMBLY – cockpit rear (at bottom headlining) NM!
12145-00 1 **TRIMSTRIP ASSEMBLY – cockpit rear (at bottom headlining) NM!
11746-00 1 TRIMSTRIP – headlining – top door frame NM!

11790-02 2 *TRIMSTRIP ASSEMBLY– leather – (at rear window) NM!
11790-08 1 TRIMSTRIP ASSEMBLY – leather – (at sliding and front of window – NM!
left rear)

11790-12 1 TRIMSTRIP ASSEMBLY – leather – (rear windshield – left) NM!
10341-00 1 TRIMSTRIP – rear window attachment – outside – right NM!
12144-00 1 **TRIMSTRIP ASSEMBLY – leather – (at rear window) – left NM!
12144-02 1 **TRIMSTRIP ASSEMBLY – leather – (at rear window) – right NM!
12093-03 1 **TRACK – right front seat – outer NM!
12093-04 1 **TRACK – right front seat – inner NM!
13541-13 2 TUBE – airspeed (airspeed to wing) NM!
13541-04 2 TUBE – airspeed (at airspeed) NM!
11704-00 1 *TUBE ASSEMBLY – flap ratchet and front seat support NM!

12089-00 1 **TUBE ASSEMBLY – flap ratchet and front seat support NM!
82161-02 17 WASHER – floorboard attachment NM!
81342-23 1 WASHER – sliding window stop NM!
-11174-000 1 WINDSHIELD NM!
11435-00 1 WINDOW ASSEMBLY – rear – left NM!
11078-00 1 WINDOW – rear – right NM!
11424-00 1 WINDOW ASSEMBLY – sliding NM!

* Used on airplanes serial numbers 14-1 to 14-204 inclusive.
** Used on airplanes serial numbers 14-490 and up.

22
