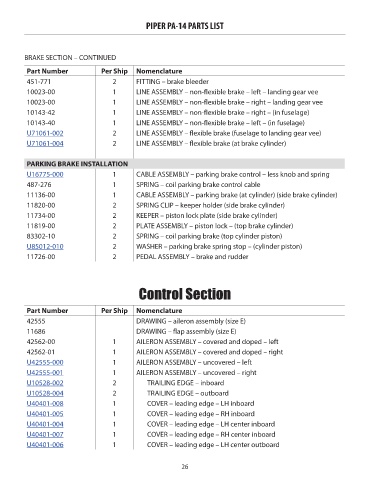

PIPER PA-14 PARTS LIST

BRAKE SECTION – CONTINUED

Part Number Per Ship Nomenclature Price
451-771 2 FITTING – brake bleeder NM!
10023-00 1 LINE ASSEMBLY – non-flexible brake – left – landing gear vee NM!
10023-00 1 LINE ASSEMBLY – non-flexible brake – right – landing gear vee NM!
10143-42 1 LINE ASSEMBLY – non-flexible brake – right – (in fuselage) NM!
10143-40 1 LINE ASSEMBLY – non-flexible brake – left – (in fuselage) NM!
U71061-002 2 LINE ASSEMBLY – flexible brake (fuselage to landing gear vee) 241.73

U71061-004 2 LINE ASSEMBLY – flexible brake (at brake cylinder) 178.08
x
PARKING BRAKE INSTALLATION NM!
U16775-000 1 CABLE ASSEMBLY – parking brake control – less knob and spring 77.86
487-276 1 SPRING – coil parking brake control cable NM!
11136-00 1 CABLE ASSEMBLY – parking brake (at cylinder) (side brake cylinder) NM!
11820-00 2 SPRING CLIP – keeper holder (side brake cylinder) NM!

11734-00 2 KEEPER – piston lock plate (side brake cylinder) NM!
11819-00 2 PLATE ASSEMBLY – piston lock – (top brake cylinder) NM!
83302-10 2 SPRING – coil parking brake (top cylinder piston) NM!
U85012-010 2 WASHER – parking brake spring stop – (cylinder piston) 5.64
11726-00 2 PEDAL ASSEMBLY – brake and rudder NM!

Control Section

Part Number Per Ship Nomenclature Price
42555 DRAWING – aileron assembly (size E) NM!
11686 DRAWING – flap assembly (size E) NM!

42562-00 1 AILERON ASSEMBLY – covered and doped – left NM!
42562-01 1 AILERON ASSEMBLY – covered and doped – right NM!
U42555-000 1 AILERON ASSEMBLY – uncovered – left 2779.46
U42555-001 1 AILERON ASSEMBLY – uncovered – right 2779.46
U10528-002 2 TRAILING EDGE – inboard 89.73
U10528-004 2 TRAILING EDGE – outboard 85.89
U40401-008 1 COVER – leading edge – LH inboard 42.41
U40401-005 1 COVER – leading edge – RH inboard 41.01
U40401-004 1 COVER – leading edge – LH center inboard 55.85

U40401-007 1 COVER – leading edge – RH center inboard 72.01
U40401-006 1 COVER – leading edge – LH center outboard 42.41

26
