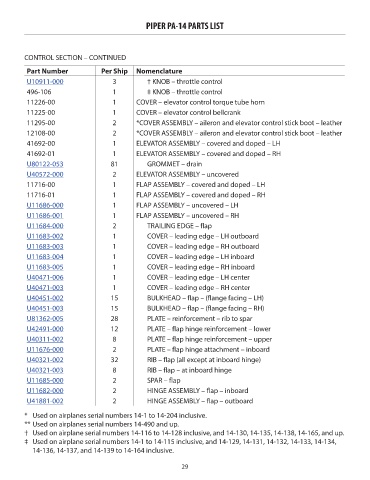

PIPER PA-14 PARTS LIST

CONTROL SECTION – CONTINUED

Part Number Per Ship Nomenclature Price
U10911-000 3 † KNOB – throttle control 12.44
496-106 1 ‡ KNOB – throttle control NM!
11226-00 1 COVER – elevator control torque tube horn NM!
11225-00 1 COVER – elevator control bellcrank NM!
11295-00 2 *COVER ASSEMBLY – aileron and elevator control stick boot – leather NM!
12108-00 2 *COVER ASSEMBLY – aileron and elevator control stick boot – leather NM!

41692-00 1 ELEVATOR ASSEMBLY – covered and doped – LH NM!
41692-01 1 ELEVATOR ASSEMBLY – covered and doped – RH NM!
U80122-053 81 GROMMET – drain 4.09
U40572-000 2 ELEVATOR ASSEMBLY – uncovered 674.78
11716-00 1 FLAP ASSEMBLY – covered and doped – LH NM!
11716-01 1 FLAP ASSEMBLY – covered and doped – RH NM!
U11686-000 1 FLAP ASSEMBLY – uncovered – LH 1385.18

U11686-001 1 FLAP ASSEMBLY – uncovered – RH 1385.18
U11684-000 2 TRAILING EDGE – flap 53.18
U11683-002 1 COVER – leading edge – LH outboard 38.56
U11683-003 1 COVER – leading edge – RH outboard 62.74
U11683-004 1 COVER – leading edge – LH inboard 45.26
U11683-005 1 COVER – leading edge – RH inboard 65.55
U40471-006 1 COVER – leading edge – LH center 45.69
U40471-003 1 COVER – leading edge – RH center 38.85
U40451-002 15 BULKHEAD – flap – (flange facing – LH) 10.89

U40451-003 15 BULKHEAD – flap – (flange facing – RH) 10.89
U81362-005 28 PLATE – reinforcement – rib to spar 1.62
U42491-000 12 PLATE – flap hinge reinforcement – lower 6.92
U40311-002 8 PLATE – flap hinge reinforcement – upper 7.33
U11676-000 2 PLATE – flap hinge attachment – inboard 17.18
U40321-002 32 RIB – flap (all except at inboard hinge) 16.7
U40321-003 8 RIB – flap – at inboard hinge 25.92

U11685-000 2 SPAR – flap 55.3
U11682-000 2 HINGE ASSEMBLY – flap – inboard 244.8
U41881-002 2 HINGE ASSEMBLY – flap – outboard 111.53

* Used on airplanes serial numbers 14-1 to 14-204 inclusive.
** Used on airplanes serial numbers 14-490 and up.
† Used on airplane serial numbers 14-116 to 14-128 inclusive, and 14-130, 14-135, 14-138, 14-165, and up.
‡ Used on airplane serial numbers 14-1 to 14-115 inclusive, and 14-129, 14-131, 14-132, 14-133, 14-134,
14-136, 14-137, and 14-139 to 14-164 inclusive.
