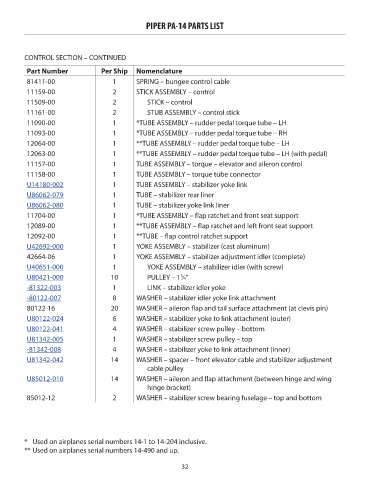

PIPER PA-14 PARTS LIST
CONTROL SECTION – CONTINUED
Part Number Per Ship Nomenclature Price
81411-00 1 SPRING – bungee control cable NM!
11159-00 2 STICK ASSEMBLY – control NM!
11509-00 2 STICK – control NM!
11161-00 2 STUB ASSEMBLY – control stick NM!
11090-00 1 *TUBE ASSEMBLY – rudder pedal torque tube – LH NM!
11093-00 1 *TUBE ASSEMBLY – rudder pedal torque tube – RH NM!
12064-00 1 **TUBE ASSEMBLY – rudder pedal torque tube – LH NM!
12063-00 1 **TUBE ASSEMBLY – rudder pedal torque tube – LH (with pedal) NM!
11157-00 1 TUBE ASSEMBLY – torque – elevator and aileron control NM!
11158-00 1 TUBE ASSEMBLY – torque tube connector NM!
U14180-002 1 TUBE ASSEMBLY – stabilizer yoke link 311.56
U86062-079 1 TUBE – stabilizer rear liner 89.95
U86062-080 1 TUBE – stabilizer yoke link liner 129.57
11704-00 1 *TUBE ASSEMBLY – flap ratchet and front seat support NM!
12089-00 1 **TUBE ASSEMBLY – flap ratchet and left front seat support NM!
12092-00 1 **TUBE – flap control ratchet support NM!
U42692-000 1 YOKE ASSEMBLY – stabilizer (cast aluminum) 289.01
42664-06 1 YOKE ASSEMBLY – stabilizer adjustment idler (complete) NM!
U40651-000 1 YOKE ASSEMBLY – stabilizer idler (with screw) 42.97
U80421-000 10 PULLEY – 1 ⁄4” 12.37
3
-81322-003 1 LINK – stabilizer idler yoke 14.25
-80122-007 8 WASHER – stabilizer idler yoke link attachment 6.11
80122-16 20 WASHER – aileron flap and tail surface attachment (at clevis pin) NM!
U80122-024 6 WASHER – stabilizer yoke to link attachment (outer) 4.18
U80122-041 4 WASHER – stabilizer screw pulley – bottom 13.35
U81342-005 1 WASHER – stabilizer screw pulley – top 9.3
-81342-008 4 WASHER – stabilizer yoke to link attachment (inner) 5.21
U81342-042 14 WASHER – spacer – front elevator cable and stabilizer adjustment 3.14
cable pulley
U85012-010 14 WASHER – aileron and flap attachment (between hinge and wing 5.64
hinge bracket)
85012-12 2 WASHER – stabilizer screw bearing fuselage – top and bottom NM!
* Used on airplanes serial numbers 14-1 to 14-204 inclusive.
** Used on airplanes serial numbers 14-490 and up.
