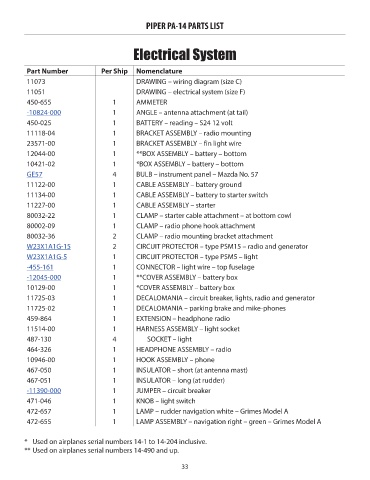

PIPER PA-14 PARTS LIST
Electrical System
Part Number Per Ship Nomenclature Price
11073 DRAWING – wiring diagram (size C) NM!
11051 DRAWING – electrical system (size F) NM!
450-655 1 AMMETER NM!
-10824-000 1 ANGLE – antenna attachment (at tail) 8.33
450-025 1 BATTERY – reading – S24 12 volt NM!
11118-04 1 BRACKET ASSEMBLY – radio mounting NM!
23571-00 1 BRACKET ASSEMBLY – fin light wire NM!
12044-00 1 **BOX ASSEMBLY – battery – bottom NM!
10421-02 1 *BOX ASSEMBLY – battery – bottom NM!
GE57 4 BULB – instrument panel – Mazda No. 57 2.09
11122-00 1 CABLE ASSEMBLY – battery ground NM!
11134-00 1 CABLE ASSEMBLY – battery to starter switch NM!
11227-00 1 CABLE ASSEMBLY – starter NM!
80032-22 1 CLAMP – starter cable attachment – at bottom cowl NM!
80002-09 1 CLAMP – radio phone hook attachment NM!
80032-36 2 CLAMP – radio mounting bracket attachment NM!
W23X1A1G-15 2 CIRCUIT PROTECTOR – type PSM15 – radio and generator 39.96
W23X1A1G-5 1 CIRCUIT PROTECTOR – type PSM5 – light 43.12
-455-161 1 CONNECTOR – light wire – top fuselage 0.92
-12045-000 1 **COVER ASSEMBLY – battery box 151.06
10129-00 1 *COVER ASSEMBLY – battery box NM!
11725-03 1 DECALOMANIA – circuit breaker, lights, radio and generator NM!
11725-02 1 DECALOMANIA – parking brake and mike-phones NM!
459-864 1 EXTENSION – headphone radio NM!
11514-00 1 HARNESS ASSEMBLY – light socket NM!
487-130 4 SOCKET – light NM!
464-326 1 HEADPHONE ASSEMBLY – radio NM!
10946-00 1 HOOK ASSEMBLY – phone NM!
467-050 1 INSULATOR – short (at antenna mast) NM!
467-051 1 INSULATOR – long (at rudder) NM!
-11390-000 1 JUMPER – circuit breaker 1.93
471-046 1 KNOB – light switch NM!
472-657 1 LAMP – rudder navigation white – Grimes Model A NM!
472-655 1 LAMP ASSEMBLY – navigation right – green – Grimes Model A NM!
* Used on airplanes serial numbers 14-1 to 14-204 inclusive.
** Used on airplanes serial numbers 14-490 and up.
