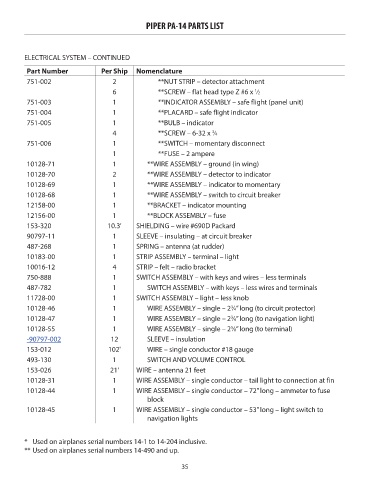

PIPER PA-14 PARTS LIST

ELECTRICAL SYSTEM – CONTINUED

Part Number Per Ship Nomenclature Price
751-002 2 **NUT STRIP – detector attachment NM!
6 **SCREW – flat head type Z #6 x ⁄2 x
1
751-003 1 **INDICATOR ASSEMBLY – safe flight (panel unit) NM!
751-004 1 **PLACARD – safe flight indicator NM!
751-005 1 **BULB – indicator NM!
4 **SCREW – 6-32 x ⁄4 x
3
751-006 1 **SWITCH – momentary disconnect NM!
1 **FUSE – 2 ampere x
10128-71 1 **WIRE ASSEMBLY – ground (in wing) NM!
10128-70 2 **WIRE ASSEMBLY – detector to indicator NM!
10128-69 1 **WIRE ASSEMBLY – indicator to momentary NM!
10128-68 1 **WIRE ASSEMBLY – switch to circuit breaker NM!
12158-00 1 **BRACKET – indicator mounting NM!

12156-00 1 **BLOCK ASSEMBLY – fuse NM!
153-320 10.3' SHIELDING – wire #690D Packard NM!
90797-11 1 SLEEVE – insulating – at circuit breaker NM!
487-268 1 SPRING – antenna (at rudder) NM!
10183-00 1 STRIP ASSEMBLY – terminal – light NM!
10016-12 4 STRIP – felt – radio bracket NM!
750-888 1 SWITCH ASSEMBLY – with keys and wires – less terminals NM!
487-782 1 SWITCH ASSEMBLY – with keys – less wires and terminals NM!
11728-00 1 SWITCH ASSEMBLY – light – less knob NM!

10128-46 1 WIRE ASSEMBLY – single – 2 ⁄4” long (to circuit protector) NM!
3
10128-47 1 WIRE ASSEMBLY – single – 2 ⁄4” long (to navigation light) NM!
3
10128-55 1 WIRE ASSEMBLY – single – 2 ⁄8” long (to terminal) NM!
5
-90797-002 12 SLEEVE – insulation 2.29
153-012 102' WIRE – single conductor #18 gauge NM!
493-130 1 SWITCH AND VOLUME CONTROL NM!
153-026 21' WIRE – antenna 21 feet NM!

10128-31 1 WIRE ASSEMBLY – single conductor – tail light to connection at fin NM!
10128-44 1 WIRE ASSEMBLY – single conductor – 72” long – ammeter to fuse NM!
block

10128-45 1 WIRE ASSEMBLY – single conductor – 53” long – light switch to NM!
navigation lights

* Used on airplanes serial numbers 14-1 to 14-204 inclusive.
** Used on airplanes serial numbers 14-490 and up.

35
