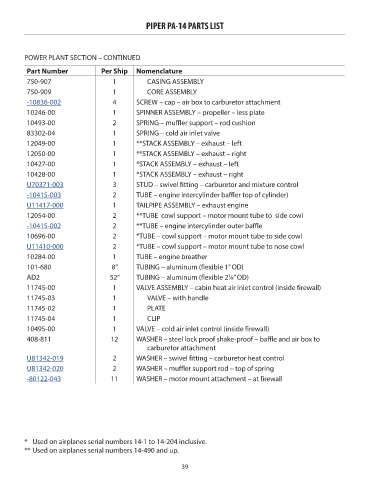

PIPER PA-14 PARTS LIST

POWER PLANT SECTION – CONTINUED

Part Number Per Ship Nomenclature Price
750-907 1 CASING ASSEMBLY NM!
750-909 1 CORE ASSEMBLY NM!
-10836-002 4 SCREW – cap – air box to carburetor attachment 1.84
10246-00 1 SPINNER ASSEMBLY – propeller – less plate NM!
10493-00 2 SPRING – muffler support – rod cushion NM!
83302-04 1 SPRING – cold air inlet valve NM!

12049-00 1 **STACK ASSEMBLY – exhaust – left NM!
12050-00 1 **STACK ASSEMBLY – exhaust – right NM!
10427-00 1 *STACK ASSEMBLY – exhaust – left NM!
10428-00 1 *STACK ASSEMBLY – exhaust – right NM!
U70371-003 3 STUD – swivel fitting – carburetor and mixture control 26.41
-10415-003 2 TUBE – engine intercylinder baffler top of cylinder) 38.75
U11417-000 1 TAILPIPE ASSEMBLY – exhaust engine 251

12054-00 2 **TUBE cowl support – motor mount tube to side cowl NM!
-10415-002 2 **TUBE – engine intercylinder outer baffle 34.26
10696-00 2 *TUBE – cowl support – motor mount tube to side cowl NM!
U11410-000 2 *TUBE – cowl support – motor mount tube to nose cowl 110.78
10284-00 1 TUBE – engine breather NM!
101-680 8” TUBING – aluminum (flexible 1” OD) NM!
AD2 52” TUBING – aluminum (flexible 2 ⁄8” OD) NM!
1
11745-00 1 VALVE ASSEMBLY – cabin heat air inlet control (inside firewall) NM!
11745-03 1 VALVE – with handle NM!

11745-02 1 PLATE NM!
11745-04 1 CLIP NM!
10495-00 1 VALVE – cold air inlet control (inside firewall) NM!
408-811 12 WASHER – steel lock proof shake-proof – baffle and air box to NM!
carburetor attachment
U81342-019 2 WASHER – swivel fitting – carburetor heat control 4.2
U81342-020 2 WASHER – muffler support rod – top of spring 3.32
-80122-043 11 WASHER – motor mount attachment – at firewall 4.51

* Used on airplanes serial numbers 14-1 to 14-204 inclusive.
** Used on airplanes serial numbers 14-490 and up.

39
