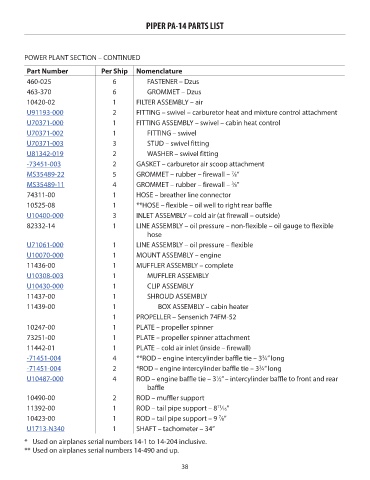

PIPER PA-14 PARTS LIST

POWER PLANT SECTION – CONTINUED

Part Number Per Ship Nomenclature Price
460-025 6 FASTENER – Dzus NM!
463-370 6 GROMMET – Dzus NM!
10420-02 1 FILTER ASSEMBLY – air NM!
U91193-000 2 FITTING – swivel – carburetor heat and mixture control attachment 20.67
U70371-000 1 FITTING ASSEMBLY – swivel – cabin heat control 56.83
U70371-002 1 FITTING – swivel 15.11

U70371-003 3 STUD – swivel fitting 26.41
U81342-019 2 WASHER – swivel fitting 4.2
-73451-003 2 GASKET – carburetor air scoop attachment 9.99
MS35489-22 5 GROMMET – rubber – firewall – ⁄8” 2.34
7
MS35489-11 4 GROMMET – rubber – firewall – ⁄8” 0.6
3
74311-00 1 HOSE – breather line connector NM!
10525-08 1 **HOSE – flexible – oil well to right rear baffle NM!

U10400-000 3 INLET ASSEMBLY – cold air (at firewall – outside) 74.22
82332-14 1 LINE ASSEMBLY – oil pressure – non-flexible – oil gauge to flexible NM!
hose

U71061-000 1 LINE ASSEMBLY – oil pressure – flexible 143.43
U10070-000 1 MOUNT ASSEMBLY – engine 1286.61
11436-00 1 MUFFLER ASSEMBLY – complete NM!
U10308-003 1 MUFFLER ASSEMBLY 2125.17
U10430-000 1 CLIP ASSEMBLY 71.23
11437-00 1 SHROUD ASSEMBLY NM!
11439-00 1 BOX ASSEMBLY – cabin heater NM!
1 PROPELLER – Sensenich 74FM-52 x
10247-00 1 PLATE – propeller spinner NM!

73251-00 1 PLATE – propeller spinner attachment NM!
11442-01 1 PLATE – cold air inlet (inside – firewall) NM!
-71451-004 4 **ROD – engine intercylinder baffle tie – 3 ⁄4” long 21.28
3
-71451-004 2 *ROD – engine intercylinder baffle tie – 3 ⁄4” long 21.28
3
U10487-000 4 ROD – engine baffle tie – 3 ⁄2” – intercylinder baffle to front and rear 19.55
1
baffle
10490-00 2 ROD – muffler support NM!
11392-00 1 ROD – tail pipe support – 8 ⁄16” NM!
11
10423-00 1 ROD – tail pipe support – 9 ⁄8” NM!
7
U1713-N340 1 SHAFT – tachometer – 34” 166.15
* Used on airplanes serial numbers 14-1 to 14-204 inclusive.
** Used on airplanes serial numbers 14-490 and up.
