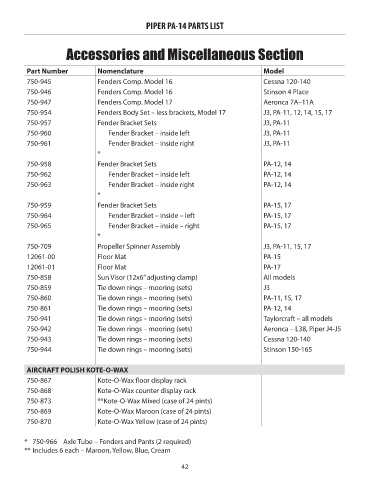

Page 46 - Piper PA-14 Family Cruiser Parts List

PIPER PA-14 PARTS LIST

Accessories and Miscellaneous Section

Part Number Nomenclature Model Price
750-945 Fenders Comp. Model 16 Cessna 120-140 NM!
750-946 Fenders Comp. Model 16 Stinson 4 Place NM!
750-947 Fenders Comp. Model 17 Aeronca 7A–11A NM!
750-954 Fenders Body Set – less brackets, Model 17 J3, PA-11, 12, 14, 15, 17 NM!
750-957 Fender Bracket Sets J3, PA-11 NM!
750-960 Fender Bracket – inside left J3, PA-11 NM!

750-961 Fender Bracket – inside right J3, PA-11 NM!
*
750-958 Fender Bracket Sets PA-12, 14 NM!
750-962 Fender Bracket – inside left PA-12, 14 NM!
750-963 Fender Bracket – inside right PA-12, 14 NM!
*
750-959 Fender Bracket Sets PA-15, 17 NM!

750-964 Fender Bracket – inside – left PA-15, 17 NM!
750-965 Fender Bracket – inside – right PA-15, 17 NM!
*
750-709 Propeller Spinner Assembly J3, PA-11, 15, 17 NM!
12061-00 Floor Mat PA-15 NM!
12061-01 Floor Mat PA-17 NM!
750-858 Sun Visor (12x6” adjusting clamp) All models NM!
750-859 Tie down rings – mooring (sets) J3 NM!
750-860 Tie down rings – mooring (sets) PA-11, 15, 17 NM!

750-861 Tie down rings – mooring (sets) PA-12, 14 NM!
750-941 Tie down rings – mooring (sets) Taylorcraft – all models NM!
750-942 Tie down rings – mooring (sets) Aeronca – L38, Piper J4-J5 NM!
750-943 Tie down rings – mooring (sets) Cessna 120-140 NM!
750-944 Tie down rings – mooring (sets) Stinson 150-165 NM!

AIRCRAFT POLISH KOTE-O-WAX

750-867 Kote-O-Wax floor display rack NM!
750-868 Kote-O-Wax counter display rack NM!
750-873 **Kote-O-Wax Mixed (case of 24 pints) NM!
750-869 Kote-O-Wax Maroon (case of 24 pints) NM!
750-870 Kote-O-Wax Yellow (case of 24 pints) NM!

* 750-966 Axle Tube – Fenders and Pants (2 required)
** Includes 6 each – Maroon, Yellow, Blue, Cream

42
