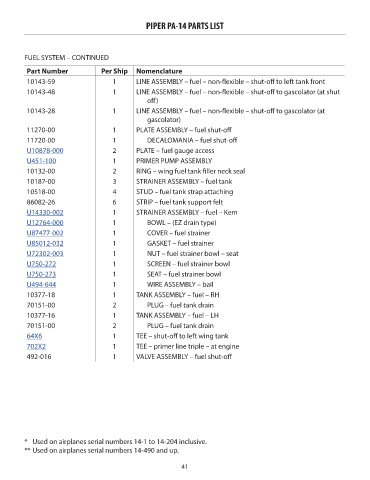

PIPER PA-14 PARTS LIST

FUEL SYSTEM – CONTINUED

Part Number Per Ship Nomenclature Price
10143-59 1 LINE ASSEMBLY – fuel – non-flexible – shut-off to left tank front NM!
10143-48 1 LINE ASSEMBLY – fuel – non-flexible – shut-off to gascolator (at shut NM!
off)
10143-28 1 LINE ASSEMBLY – fuel – non-flexible – shut-off to gascolator (at NM!
gascolator)
11270-00 1 PLATE ASSEMBLY – fuel shut-off NM!
11720-00 1 DECALOMANIA – fuel shut-off NM!
U10878-000 2 PLATE – fuel gauge access 19.08
U451-100 1 PRIMER PUMP ASSEMBLY 419.22
10132-00 2 RING – wing fuel tank filler neck seal NM!
10187-00 3 STRAINER ASSEMBLY – fuel tank NM!

10518-00 4 STUD – fuel tank strap attaching NM!
86082-26 6 STRIP – fuel tank support felt NM!
U14330-002 1 STRAINER ASSEMBLY – fuel – Kem 300.56
U12764-000 1 BOWL – (EZ drain type) 136.73
U87477-002 1 COVER – fuel strainer 122.83
U85012-032 1 GASKET – fuel strainer 4.19
U72302-003 1 NUT – fuel strainer bowl – seat 21.34

U750-272 1 SCREEN – fuel strainer bowl 2.89
U750-273 1 SEAT – fuel strainer bowl 18.9
U494-644 1 WIRE ASSEMBLY – bail 69.43
10377-18 1 TANK ASSEMBLY – fuel – RH NM!
70151-00 2 PLUG – fuel tank drain NM!
10377-16 1 TANK ASSEMBLY – fuel – LH NM!
70151-00 2 PLUG – fuel tank drain NM!
64X6 1 TEE – shut-off to left wing tank 3.4
702X2 1 TEE – primer line triple – at engine 39.12

492-016 1 VALVE ASSEMBLY – fuel shut-off NM!

* Used on airplanes serial numbers 14-1 to 14-204 inclusive.
** Used on airplanes serial numbers 14-490 and up.
