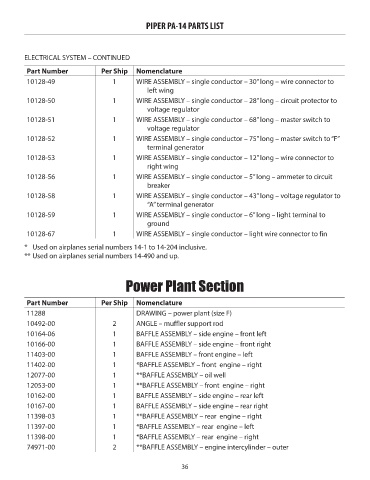

PIPER PA-14 PARTS LIST

ELECTRICAL SYSTEM – CONTINUED

Part Number Per Ship Nomenclature Price
10128-49 1 WIRE ASSEMBLY – single conductor – 30” long – wire connector to NM!
left wing
10128-50 1 WIRE ASSEMBLY – single conductor – 28” long – circuit protector to NM!
voltage regulator
10128-51 1 WIRE ASSEMBLY – single conductor – 68” long – master switch to NM!
voltage regulator
10128-52 1 WIRE ASSEMBLY – single conductor – 75” long – master switch to “F” NM!
terminal generator
10128-53 1 WIRE ASSEMBLY – single conductor – 12” long – wire connector to NM!
right wing

10128-56 1 WIRE ASSEMBLY – single conductor – 5” long – ammeter to circuit NM!
breaker
10128-58 1 WIRE ASSEMBLY – single conductor – 43” long – voltage regulator to NM!
“A” terminal generator
10128-59 1 WIRE ASSEMBLY – single conductor – 6” long – light terminal to NM!
ground
10128-67 1 WIRE ASSEMBLY – single conductor – light wire connector to fin NM!

* Used on airplanes serial numbers 14-1 to 14-204 inclusive.
** Used on airplanes serial numbers 14-490 and up.

Power Plant Section

Part Number Per Ship Nomenclature Price
11288 DRAWING – power plant (size F) NM!
10492-00 2 ANGLE – muffler support rod NM!
10164-06 1 BAFFLE ASSEMBLY – side engine – front left NM!
10166-00 1 BAFFLE ASSEMBLY – side engine – front right NM!
11403-00 1 BAFFLE ASSEMBLY – front engine – left NM!
11402-00 1 *BAFFLE ASSEMBLY – front engine – right NM!
12077-00 1 **BAFFLE ASSEMBLY – oil well NM!
12053-00 1 **BAFFLE ASSEMBLY – front engine – right NM!

10162-00 1 BAFFLE ASSEMBLY – side engine – rear left NM!
10167-00 1 BAFFLE ASSEMBLY – side engine – rear right NM!
11398-03 1 **BAFFLE ASSEMBLY – rear engine – right NM!
11397-00 1 *BAFFLE ASSEMBLY – rear engine – left NM!
11398-00 1 *BAFFLE ASSEMBLY – rear engine – right NM!
74971-00 2 **BAFFLE ASSEMBLY – engine intercylinder – outer NM!
