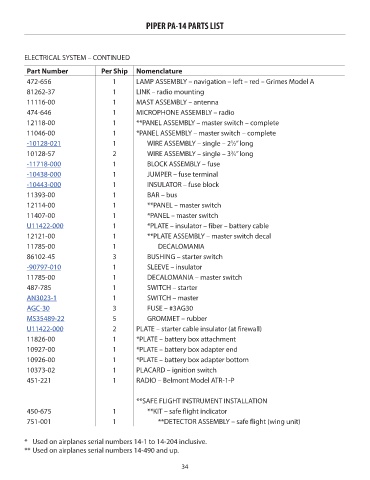

PIPER PA-14 PARTS LIST
ELECTRICAL SYSTEM – CONTINUED
Part Number Per Ship Nomenclature Price
472-656 1 LAMP ASSEMBLY – navigation – left – red – Grimes Model A NM!
81262-37 1 LINK – radio mounting NM!
11116-00 1 MAST ASSEMBLY – antenna NM!
474-646 1 MICROPHONE ASSEMBLY – radio NM!
12118-00 1 **PANEL ASSEMBLY – master switch – complete NM!
11046-00 1 *PANEL ASSEMBLY – master switch – complete NM!
-10128-021 1 WIRE ASSEMBLY – single – 2 ⁄2” long 1.46
1
10128-57 2 WIRE ASSEMBLY – single – 3 ⁄4” long NM!
3
-11718-000 1 BLOCK ASSEMBLY – fuse 61.62
-10438-000 1 JUMPER – fuse terminal 16
-10443-000 1 INSULATOR – fuse block 23
11393-00 1 BAR – bus NM!
12114-00 1 **PANEL – master switch NM!
11407-00 1 *PANEL – master switch NM!
U11422-000 1 *PLATE – insulator – fiber – battery cable 44.76
12121-00 1 **PLATE ASSEMBLY – master switch decal NM!
11785-00 1 DECALOMANIA NM!
86102-45 3 BUSHING – starter switch NM!
-90797-010 1 SLEEVE – insulator 3.64
11785-00 1 DECALOMANIA – master switch NM!
487-785 1 SWITCH – starter NM!
AN3023-1 1 SWITCH – master 400
AGC-30 3 FUSE – #3AG30 1.42
MS35489-22 5 GROMMET – rubber 2.34
U11422-000 2 PLATE – starter cable insulator (at firewall) 44.76
11826-00 1 *PLATE – battery box attachment NM!
10927-00 1 *PLATE – battery box adapter end NM!
10926-00 1 *PLATE – battery box adapter bottom NM!
10373-02 1 PLACARD – ignition switch NM!
451-221 1 RADIO – Belmont Model ATR-1-P NM!
**SAFE FLIGHT INSTRUMENT INSTALLATION x
450-675 1 **KIT – safe flight indicator NM!
751-001 1 **DETECTOR ASSEMBLY – safe flight (wing unit) NM!
* Used on airplanes serial numbers 14-1 to 14-204 inclusive.
** Used on airplanes serial numbers 14-490 and up.
34
