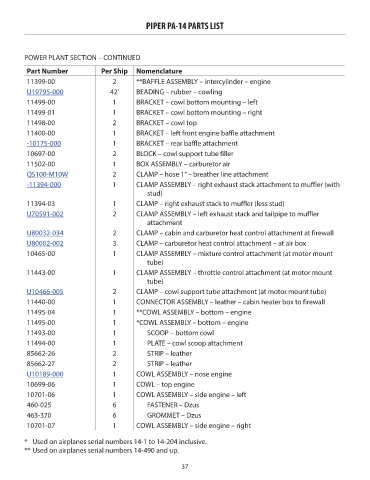

PIPER PA-14 PARTS LIST

POWER PLANT SECTION – CONTINUED

Part Number Per Ship Nomenclature Price
11399-00 2 **BAFFLE ASSEMBLY – intercylinder – engine NM!
U19795-000 42' BEADING – rubber – cowling 27.08
11499-00 1 BRACKET – cowl bottom mounting – left NM!
11499-01 1 BRACKET – cowl bottom mounting – right NM!
11498-00 2 BRACKET – cowl top NM!
11400-00 1 BRACKET – left front engine baffle attachment NM!

-10175-000 1 BRACKET – rear baffle attachment 66.13
10697-00 2 BLOCK – cowl support tube filler NM!
11502-00 1 BOX ASSEMBLY – carburetor air NM!
QS100-M10W 2 CLAMP – hose 1” – breather line attachment 4.65
-11394-000 1 CLAMP ASSEMBLY – right exhaust stack attachment to muffler (with 40.94
stud)
11394-03 1 CLAMP – right exhaust stack to muffler (less stud) NM!
U70591-002 2 CLAMP ASSEMBLY – left exhaust stack and tailpipe to muffler 34.61
attachment
U80032-034 2 CLAMP – cabin and carburetor heat control attachment at firewall 25.91
U80002-002 3 CLAMP – carburetor heat control attachment – at air box 34.32
10465-00 1 CLAMP ASSEMBLY – mixture control attachment (at motor mount NM!
tube)
11443-00 1 CLAMP ASSEMBLY – throttle control attachment (at motor mount NM!
tube)
U10466-005 2 CLAMP – cowl support tube attachment (at motor mount tube) 20.73
11440-00 1 CONNECTOR ASSEMBLY – leather – cabin heater box to firewall NM!

11495-04 1 **COWL ASSEMBLY – bottom – engine NM!
11495-00 1 *COWL ASSEMBLY – bottom – engine NM!
11493-00 1 SCOOP – bottom cowl NM!
11494-00 1 PLATE – cowl scoop attachment NM!
85662-26 2 STRIP – leather NM!
85662-27 2 STRIP – leather NM!
U10189-000 1 COWL ASSEMBLY – nose engine 1933.47
10699-06 1 COWL – top engine NM!
10701-06 1 COWL ASSEMBLY – side engine – left NM!

460-025 6 FASTENER – Dzus NM!
463-370 6 GROMMET – Dzus NM!
10701-07 1 COWL ASSEMBLY – side engine – right NM!

* Used on airplanes serial numbers 14-1 to 14-204 inclusive.
** Used on airplanes serial numbers 14-490 and up.
