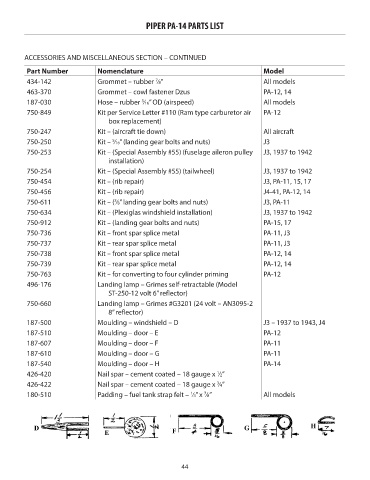

PIPER PA-14 PARTS LIST

ACCESSORIES AND MISCELLANEOUS SECTION – CONTINUED

Part Number Nomenclature Model Price
434-142 Grommet – rubber ⁄8” All models NM!
7
463-370 Grommet – cowl fastener Dzus PA-12, 14 NM!
187-030 Hose – rubber ⁄16” OD (airspeed) All models NM!
3
750-849 Kit per Service Letter #110 (Ram type carburetor air PA-12 NM!
box replacement)
750-247 Kit – (aircraft tie down) All aircraft NM!
750-250 Kit – ⁄16” (landing gear bolts and nuts) J3 NM!
5
750-253 Kit – (Special Assembly #55) (fuselage aileron pulley J3, 1937 to 1942 NM!
installation)
750-254 Kit – (Special Assembly #55) (tailwheel) J3, 1937 to 1942 NM!
750-454 Kit – (rib repair) J3, PA-11, 15, 17 NM!

750-456 Kit – (rib repair) J4-41, PA-12, 14 NM!
750-611 Kit – ( ⁄8” landing gear bolts and nuts) J3, PA-11 NM!
3
750-634 Kit – (Plexiglas windshield installation) J3, 1937 to 1942 NM!
750-912 Kit – (landing gear bolts and nuts) PA-15, 17 NM!
750-736 Kit – front spar splice metal PA-11, J3 NM!
750-737 Kit – rear spar splice metal PA-11, J3 NM!
750-738 Kit – front spar splice metal PA-12, 14 NM!

750-739 Kit – rear spar splice metal PA-12, 14 NM!
750-763 Kit – for converting to four cylinder priming PA-12 NM!
496-176 Landing lamp – Grimes self-retractable (Model NM!
ST-250-12 volt 6” reflector)
750-660 Landing lamp – Grimes #G3201 (24 volt – AN3095-2 NM!
8” reflector)
187-500 Moulding – windshield – D J3 – 1937 to 1943, J4 NM!
187-510 Moulding – door – E PA-12 NM!
187-607 Moulding – door – F PA-11 NM!
187-610 Moulding – door – G PA-11 NM!
187-540 Moulding – door – H PA-14 NM!
1
426-420 Nail spar – cement coated – 18 gauge x ⁄2” NM!
3
426-422 Nail spar – cement coated – 18 gauge x ⁄4” NM!
7
180-510 Padding – fuel tank strap felt – ⁄4” x ⁄8” All models NM!
1

44
