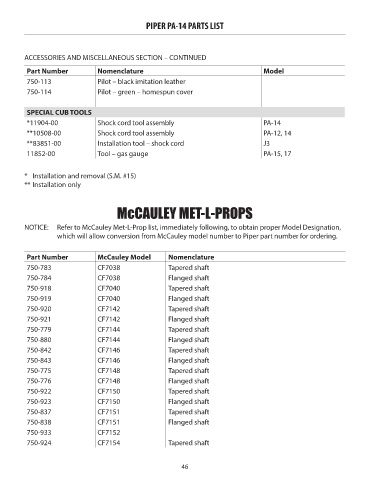

PIPER PA-14 PARTS LIST
ACCESSORIES AND MISCELLANEOUS SECTION – CONTINUED
Part Number Nomenclature Model Price
750-113 Pilot – black imitation leather NM!
750-114 Pilot – green – homespun cover NM!
x
SPECIAL CUB TOOLS NM!
*11904-00 Shock cord tool assembly PA-14 NM!
**10508-00 Shock cord tool assembly PA-12, 14 NM!
**83851-00 Installation tool – shock cord J3 NM!
11852-00 Tool – gas gauge PA-15, 17 NM!
* Installation and removal (S.M. #15)
** Installation only
McCAULEY MET-L-PROPS
NOTICE: Refer to McCauley Met-L-Prop list, immediately following, to obtain proper Model Designation,
which will allow conversion from McCauley model number to Piper part number for ordering.
Part Number McCauley Model Nomenclature Price
750-783 CF7038 Tapered shaft NM!
750-784 CF7038 Flanged shaft NM!
750-918 CF7040 Tapered shaft NM!
750-919 CF7040 Flanged shaft NM!
750-920 CF7142 Tapered shaft NM!
750-921 CF7142 Flanged shaft NM!
750-779 CF7144 Tapered shaft NM!
750-880 CF7144 Flanged shaft NM!
750-842 CF7146 Tapered shaft NM!
750-843 CF7146 Flanged shaft NM!
750-775 CF7148 Tapered shaft NM!
750-776 CF7148 Flanged shaft NM!
750-922 CF7150 Tapered shaft NM!
750-923 CF7150 Flanged shaft NM!
750-837 CF7151 Tapered shaft NM!
750-838 CF7151 Flanged shaft NM!
750-933 CF7152 NM!
750-924 CF7154 Tapered shaft NM!
46
