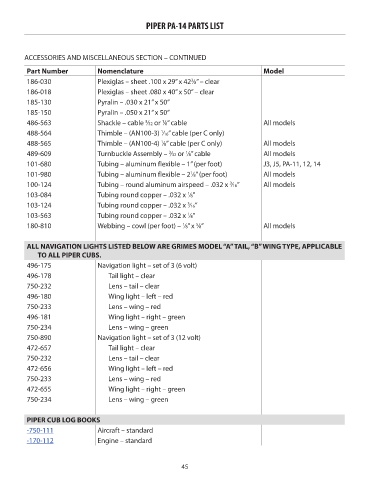

Page 49 - Piper PA-14 Family Cruiser Parts List

PIPER PA-14 PARTS LIST

ACCESSORIES AND MISCELLANEOUS SECTION – CONTINUED

Part Number Nomenclature Model Price
186-030 Plexiglas – sheet .100 x 29” x 42 ⁄8” – clear NM!
3
186-018 Plexiglas – sheet .080 x 40” x 50” – clear NM!
185-130 Pyralin – .030 x 21” x 50” NM!
185-150 Pyralin – .050 x 21” x 50” NM!
486-563 Shackle – cable ⁄32 or ⁄8” cable All models NM!
3
1
488-564 Thimble – (AN100-3) ⁄16” cable (per C only) NM!
1
488-565 Thimble – (AN100-4) ⁄8” cable (per C only) All models NM!
1
489-609 Turnbuckle Assembly – ⁄32 or ⁄8” cable All models NM!
1
3
101-680 Tubing – aluminum flexible – 1” (per foot) J3, J5, PA-11, 12, 14 NM!
101-980 Tubing – aluminum flexible – 2 ⁄8” (per foot) All models NM!
1
100-124 Tubing – round aluminum airspeed – .032 x ⁄16” All models NM!
3
103-084 Tubing round copper – .032 x ⁄8” NM!
1
103-124 Tubing round copper – .032 x ⁄16” NM!
3
103-563 Tubing round copper – .032 x ⁄4” NM!
1
180-810 Webbing – cowl (per foot) – ⁄8” x ⁄8” All models NM!
5
1
ALL NAVIGATION LIGHTS LISTED BELOW ARE GRIMES MODEL “A” TAIL, “B” WING TYPE, APPLICABLE
TO ALL PIPER CUBS.
496-175 Navigation light – set of 3 (6 volt) NM!
496-178 Tail light – clear NM!
750-232 Lens – tail – clear NM!
496-180 Wing light – left – red NM!
750-233 Lens – wing – red NM!
496-181 Wing light – right – green NM!
750-234 Lens – wing – green NM!

750-890 Navigation light – set of 3 (12 volt) NM!
472-657 Tail light – clear NM!
750-232 Lens – tail – clear NM!
472-656 Wing light – left – red NM!
750-233 Lens – wing – red NM!
472-655 Wing light – right – green NM!
750-234 Lens – wing – green NM!

PIPER CUB LOG BOOKS
-750-111 Aircraft – standard 25.25
-170-112 Engine – standard 33.54

45
