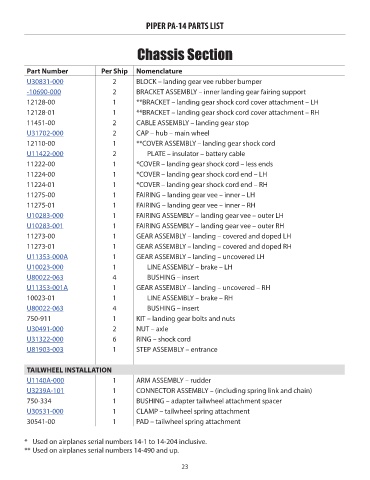

PIPER PA-14 PARTS LIST

Chassis Section

Part Number Per Ship Nomenclature Price
U30831-000 2 BLOCK – landing gear vee rubber bumper 17.07
-10690-000 2 BRACKET ASSEMBLY – inner landing gear fairing support 96.33
12128-00 1 **BRACKET – landing gear shock cord cover attachment – LH NM!
12128-01 1 **BRACKET – landing gear shock cord cover attachment – RH NM!
11451-00 2 CABLE ASSEMBLY – landing gear stop NM!
U31702-000 2 CAP – hub – main wheel 41.8

12110-00 1 **COVER ASSEMBLY – landing gear shock cord NM!
U11422-000 2 PLATE – insulator – battery cable 44.76
11222-00 1 *COVER – landing gear shock cord – less ends NM!
11224-00 1 *COVER – landing gear shock cord end – LH NM!
11224-01 1 *COVER – landing gear shock cord end – RH NM!
11275-00 1 FAIRING – landing gear vee – inner – LH NM!
11275-01 1 FAIRING – landing gear vee – inner – RH NM!

U10283-000 1 FAIRING ASSEMBLY – landing gear vee – outer LH 465.38
U10283-001 1 FAIRING ASSEMBLY – landing gear vee – outer RH 465.38
11273-00 1 GEAR ASSEMBLY – landing – covered and doped LH NM!
11273-01 1 GEAR ASSEMBLY – landing – covered and doped RH NM!
U11353-000A 1 GEAR ASSEMBLY – landing – uncovered LH 1831.68
U10023-000 1 LINE ASSEMBLY – brake – LH 54.96
U80022-063 4 BUSHING – insert 13.19
U11353-001A 1 GEAR ASSEMBLY – landing – uncovered – RH 1831.68
10023-01 1 LINE ASSEMBLY – brake – RH NM!

U80022-063 4 BUSHING – insert 13.19
750-911 1 KIT – landing gear bolts and nuts NM!
U30491-000 2 NUT – axle 77.13
U31322-000 6 RING – shock cord 54.97
U81903-003 1 STEP ASSEMBLY – entrance 307.34
x
TAILWHEEL INSTALLATION NM!

U1140A-000 1 ARM ASSEMBLY – rudder 218.93
U3239A-101 1 CONNECTOR ASSEMBLY – (including spring link and chain) 82.97
750-334 1 BUSHING – adapter tailwheel attachment spacer NM!
U30531-000 1 CLAMP – tailwheel spring attachment 31.59
30541-00 1 PAD – tailwheel spring attachment NM!

* Used on airplanes serial numbers 14-1 to 14-204 inclusive.
** Used on airplanes serial numbers 14-490 and up.

23
