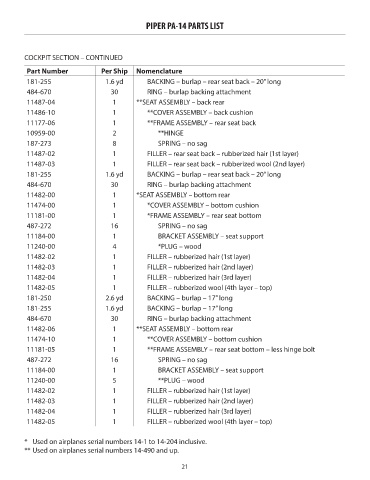

PIPER PA-14 PARTS LIST
COCKPIT SECTION – CONTINUED
Part Number Per Ship Nomenclature Price
181-255 1.6 yd BACKING – burlap – rear seat back – 20” long NM!
484-670 30 RING – burlap backing attachment NM!
11487-04 1 **SEAT ASSEMBLY – back rear NM!
11486-10 1 **COVER ASSEMBLY – back cushion NM!
11177-06 1 **FRAME ASSEMBLY – rear seat back NM!
10959-00 2 **HINGE NM!
187-273 8 SPRING – no sag NM!
11487-02 1 FILLER – rear seat back – rubberized hair (1st layer) NM!
11487-03 1 FILLER – rear seat back – rubberized wool (2nd layer) NM!
181-255 1.6 yd BACKING – burlap – rear seat back – 20” long NM!
484-670 30 RING – burlap backing attachment NM!
11482-00 1 *SEAT ASSEMBLY – bottom rear NM!
11474-00 1 *COVER ASSEMBLY – bottom cushion NM!
11181-00 1 *FRAME ASSEMBLY – rear seat bottom NM!
487-272 16 SPRING – no sag NM!
11184-00 1 BRACKET ASSEMBLY – seat support NM!
11240-00 4 *PLUG – wood NM!
11482-02 1 FILLER – rubberized hair (1st layer) NM!
11482-03 1 FILLER – rubberized hair (2nd layer) NM!
11482-04 1 FILLER – rubberized hair (3rd layer) NM!
11482-05 1 FILLER – rubberized wool (4th layer – top) NM!
181-250 2.6 yd BACKING – burlap – 17” long NM!
181-255 1.6 yd BACKING – burlap – 17” long NM!
484-670 30 RING – burlap backing attachment NM!
11482-06 1 **SEAT ASSEMBLY – bottom rear NM!
11474-10 1 **COVER ASSEMBLY – bottom cushion NM!
11181-05 1 **FRAME ASSEMBLY – rear seat bottom – less hinge bolt NM!
487-272 16 SPRING – no sag NM!
11184-00 1 BRACKET ASSEMBLY – seat support NM!
11240-00 5 **PLUG – wood NM!
11482-02 1 FILLER – rubberized hair (1st layer) NM!
11482-03 1 FILLER – rubberized hair (2nd layer) NM!
11482-04 1 FILLER – rubberized hair (3rd layer) NM!
11482-05 1 FILLER – rubberized wool (4th layer – top) NM!
* Used on airplanes serial numbers 14-1 to 14-204 inclusive.
** Used on airplanes serial numbers 14-490 and up.
