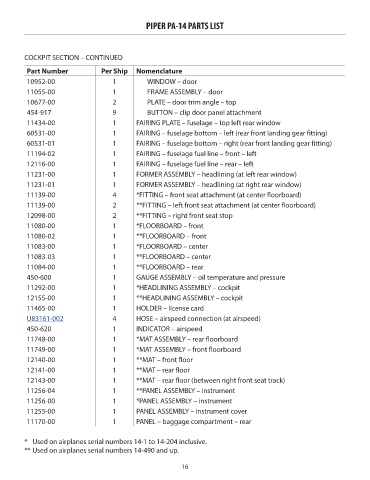

PIPER PA-14 PARTS LIST

COCKPIT SECTION – CONTINUED

Part Number Per Ship Nomenclature Price
10952-00 1 WINDOW – door NM!
11055-00 1 FRAME ASSEMBLY – door NM!
10677-00 2 PLATE – door trim angle – top NM!
454-917 9 BUTTON – clip door panel attachment NM!
11434-00 1 FAIRING PLATE – fuselage – top left rear window NM!
60531-00 1 FAIRING – fuselage bottom – left (rear front landing gear fitting) NM!

60531-01 1 FAIRING – fuselage bottom – right (rear front landing gear fitting) NM!
11194-02 1 FAIRING – fuselage fuel line – front – left NM!
12116-00 1 FAIRING – fuselage fuel line – rear – left NM!
11231-00 1 FORMER ASSEMBLY – headlining (at left rear window) NM!
11231-01 1 FORMER ASSEMBLY – headlining (at right rear window) NM!
11139-00 4 *FITTING – front seat attachment (at center floorboard) NM!
11139-00 2 **FITTING – left front seat attachment (at center floorboard) NM!

12098-00 2 **FITTING – right front seat stop NM!
11080-00 1 *FLOORBOARD – front NM!
11080-02 1 **FLOORBOARD – front NM!
11083-00 1 *FLOORBOARD – center NM!
11083-03 1 **FLOORBOARD – center NM!
11084-00 1 **FLOORBOARD – rear NM!
450-600 1 GAUGE ASSEMBLY – oil temperature and pressure NM!
11292-00 1 *HEADLINING ASSEMBLY – cockpit NM!
12155-00 1 **HEADLINING ASSEMBLY – cockpit NM!

11465-00 1 HOLDER – license card NM!
U83161-002 4 HOSE – airspeed connection (at airspeed) 5.91
450-620 1 INDICATOR – airspeed NM!
11748-00 1 *MAT ASSEMBLY – rear floorboard NM!
11749-00 1 *MAT ASSEMBLY – front floorboard NM!
12140-00 1 **MAT – front floor NM!
12141-00 1 **MAT – rear floor NM!

12143-00 1 **MAT – rear floor (between right front seat track) NM!
11256-04 1 **PANEL ASSEMBLY – instrument NM!
11256-00 1 *PANEL ASSEMBLY – instrument NM!
11255-00 1 PANEL ASSEMBLY – instrument cover NM!
11170-00 1 PANEL – baggage compartment – rear NM!

* Used on airplanes serial numbers 14-1 to 14-204 inclusive.
** Used on airplanes serial numbers 14-490 and up.

16
