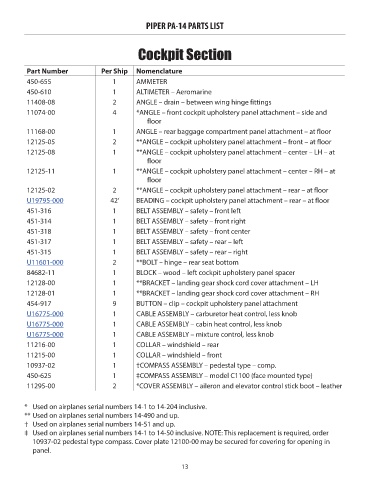

PIPER PA-14 PARTS LIST

Cockpit Section

Part Number Per Ship Nomenclature Price
450-655 1 AMMETER NM!
450-610 1 ALTIMETER – Aeromarine NM!
11408-08 2 ANGLE – drain – between wing hinge fittings NM!
11074-00 4 *ANGLE – front cockpit upholstery panel attachment – side and NM!
floor
11168-00 1 ANGLE – rear baggage compartment panel attachment – at floor NM!
12125-05 2 **ANGLE – cockpit upholstery panel attachment – front – at floor NM!
12125-08 1 **ANGLE – cockpit upholstery panel attachment – center – LH – at NM!
floor
12125-11 1 **ANGLE – cockpit upholstery panel attachment – center – RH – at NM!
floor
12125-02 2 **ANGLE – cockpit upholstery panel attachment – rear – at floor NM!
U19795-000 42’ BEADING – cockpit upholstery panel attachment – rear – at floor 27.08
451-316 1 BELT ASSEMBLY – safety – front left NM!

451-314 1 BELT ASSEMBLY – safety – front right NM!
451-318 1 BELT ASSEMBLY – safety – front center NM!
451-317 1 BELT ASSEMBLY – safety – rear – left NM!
451-315 1 BELT ASSEMBLY – safety – rear – right NM!
U11601-000 2 **BOLT – hinge – rear seat bottom 56.63
84682-11 1 BLOCK – wood – left cockpit upholstery panel spacer NM!
12128-00 1 **BRACKET – landing gear shock cord cover attachment – LH NM!

12128-01 1 **BRACKET – landing gear shock cord cover attachment – RH NM!
454-917 9 BUTTON – clip – cockpit upholstery panel attachment NM!
U16775-000 1 CABLE ASSEMBLY – carburetor heat control, less knob 77.86
U16775-000 1 CABLE ASSEMBLY – cabin heat control, less knob 77.86
U16775-000 1 CABLE ASSEMBLY – mixture control, less knob 77.86
11216-00 1 COLLAR – windshield – rear NM!
11215-00 1 COLLAR – windshield – front NM!
10937-02 1 †COMPASS ASSEMBLY – pedestal type – comp. NM!
450-625 1 ‡COMPASS ASSEMBLY – model C1100 (face mounted type) NM!

11295-00 2 *COVER ASSEMBLY – aileron and elevator control stick boot – leather NM!

* Used on airplanes serial numbers 14-1 to 14-204 inclusive.
** Used on airplanes serial numbers 14-490 and up.
† Used on airplanes serial numbers 14-51 and up.
‡ Used on airplanes serial numbers 14-1 to 14-50 inclusive. NOTE: This replacement is required, order
10937-02 pedestal type compass. Cover plate 12100-00 may be secured for covering for opening in
panel.

13
