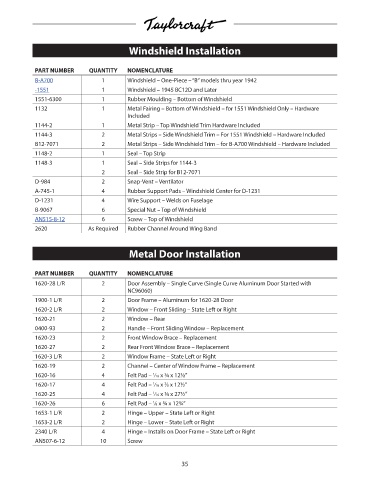

Page 39 - Taylorcraft Interactive Digital Parts Catalog

Windshield Installation

PART NUMBER QUANTITY NOMENCLATURE PRICE
B-A700 1 Windshield – One-Piece – “B” models thru year 1942 NM!
-1551 1 Windshield – 1945 BC12D and Later 371.25
1551-6300 1 Rubber Moulding – Bottom of Windshield NM!
1132 1 Metal Fairing – Bottom of Windshield – for 1551 Windshield Only – Hardware NM!
Included
1144-2 1 Metal Strip – Top Windshield Trim Hardware Included NM!
1144-3 2 Metal Strips – Side Windshield Trim – For 1551 Windshield – Hardware Included NM!
B12-7071 2 Metal Strips – Side Windshield Trim – for B-A700 Windshield – Hardware Included NM!
1148-2 1 Seal – Top Strip NM!
1148-3 1 Seal – Side Strips for 1144-3 NM!
2 Seal – Side Strip for B12-7071
D-984 2 Snap-Vent – Ventilator NM!
A-745-1 4 Rubber Support Pads – Windshield Center for D-1231 NM!
D-1231 4 Wire Support – Welds on Fuselage NM!
B-9067 6 Special Nut – Top of Windshield NM!
AN515-8-12 6 Screw – Top of Windshield 0.09
2620 As Required Rubber Channel Around Wing Band NM!

Metal Door Installation

PART NUMBER QUANTITY NOMENCLATURE PRICE
1620-28 L/R 2 Door Assembly – Single Curve (Single Curve Aluminum Door Started with NM!
NC96060)
1900-1 L/R 2 Door Frame – Aluminum for 1620-28 Door NM!
1620-2 L/R 2 Window – Front Sliding – State Left or Right NM!
1620-21 2 Window – Rear NM!
0400-93 2 Handle – Front Sliding Window – Replacement NM!
1620-23 2 Front Window Brace – Replacement NM!
1620-27 2 Rear Front Window Brace – Replacement NM!
1620-3 L/R 2 Window Frame – State Left or Right NM!
1620-19 2 Channel – Center of Window Frame – Replacement NM!
1620-16 4 Felt Pad – ⁄16 x ¾ x 12½” NM!
1
1620-17 4 Felt Pad – ⁄16 x ⁄8 x 12½” NM!
3
1
1
1620-25 4 Felt Pad – ⁄16 x ¾ x 27½’’ NM!
1620-26 6 Felt Pad – ⁄8 x ¾ x 12¾” NM!
1
1653-1 L/R 2 Hinge – Upper – State Left or Right NM!
1653-2 L/R 2 Hinge – Lower – State Left or Right NM!
2340 L/R 4 Hinge – Installs on Door Frame – State Left or Right NM!
AN507-6-12 10 Screw NM!

35
