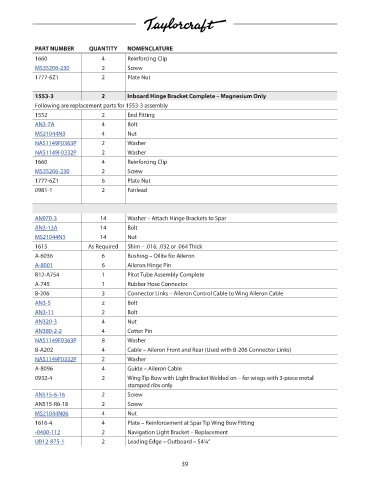

Page 43 - Taylorcraft Interactive Digital Parts Catalog

PART NUMBER QUANTITY NOMENCLATURE PRICE
1660 4 Reinforcing Clip NM!
MS35206-230 2 Screw 0.08
1777-6Z1 2 Plate Nut NM!
x
1553-3 2 Inboard Hinge Bracket Complete – Magnesium Only NM!
Following are replacement parts for 1553-3 assembly
1552 2 End Fitting NM!
AN3-7A 4 Bolt 0.52
MS21044N3 4 Nut 0.24
NAS1149F0363P 2 Washer 0.04
NAS1149F0332P 2 Washer 0.04
1660 4 Reinforcing Clip NM!
MS35206-230 2 Screw 0.08
1777-6Z1 6 Plate Nut NM!
0981-1 2 Fairlead NM!

AN970-3 14 Washer – Attach Hinge Brackets to Spar 0.16
AN3-13A 14 Bolt 0.3
MS21044N3 14 Nut 0.24
1615 As Required Shim – .016, .032 or .064 Thick NM!
A-6036 6 Bushing – Oilite for Aileron NM!
A-8001 6 Aileron Hinge Pin 19.55
B12-A754 1 Pitot Tube Assembly Complete NM!
A-745 1 Rubber Hose Connector NM!
B-206 3 Connector Links – Aileron Control Cable to Wing Aileron Cable NM!
AN3-5 z Bolt 0.6
AN3-11 2 Bolt 1.02
AN320-3 4 Nut 1
AN380-2-2 4 Cotter Pin 0.04
NAS1149F0363P 8 Washer 0.04
B-A202 4 Cable – Aileron Front and Rear (Used with B-206 Connector Links) NM!
NAS1149F0332P 2 Washer 0.04
A-8096 4 Guide – Aileron Cable NM!
0932-4 2 Wing Tip Bow with Light Bracket Welded on – for wings with 3-piece metal NM!
stamped ribs only
AN515-6-16 2 Screw 0.11
AN515-R6-18 2 Screw NM!
MS21044N06 4 Nut 0.32
1616-4 4 Plate – Reinforcement at Spar Tip Wing Bow Fitting NM!
-0400-112 2 Navigation Light Bracket – Replacement 37.18
UB12-875-1 2 Leading Edge – Outboard – 54¼” 119.92

39
