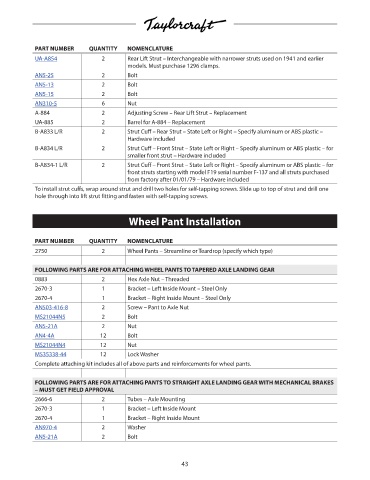

Page 47 - Taylorcraft Interactive Digital Parts Catalog

PART NUMBER QUANTITY NOMENCLATURE PRICE
UA-A854 2 Rear Lift Strut – Interchangeable with narrower struts used on 1941 and earlier 709.9
models. Must purchase 1296 clamps.
AN5-25 2 Bolt 1.22
AN5-13 2 Bolt 0.8
AN5-15 2 Bolt 0.96
AN310-5 6 Nut 2
A-884 2 Adjusting Screw – Rear Lift Strut – Replacement NM!
UA-885 2 Barrel for A-884 – Replacement NM!
B-A833 L/R 2 Strut Cuff – Rear Strut – State Left or Right – Specify aluminum or ABS plastic – NM!
Hardware included
B-A834 L/R 2 Strut Cuff – Front Strut – State Left or Right – Specify aluminum or ABS plastic – for NM!
smaller front strut – Hardware included
B-A834-1 L/R 2 Strut Cuff – Front Strut – State Left or Right – Specify aluminum or ABS plastic – for NM!
front struts starting with model F19 serial number F-137 and all struts purchased
from factory after 01/01/79 – Hardware included
To install strut cuffs, wrap around strut and drill two holes for self-tapping screws. Slide up to top of strut and drill one
hole through into lift strut fitting and fasten with self-tapping screws.

Wheel Pant Installation

PART NUMBER QUANTITY NOMENCLATURE PRICE
2750 2 Wheel Pants – Streamline or Teardrop (specify which type) NM!

FOLLOWING PARTS ARE FOR ATTACHING WHEEL PANTS TO TAPERED AXLE LANDING GEAR
0883 2 Hex Axle Nut – Threaded NM!
2670-3 1 Bracket – Left Inside Mount – Steel Only NM!
2670-4 1 Bracket – Right Inside Mount – Steel Only NM!
AN503-416-8 2 Screw – Pant to Axle Nut 1.02
MS21044N5 2 Bolt 0.4
AN5-21A 2 Nut 0.84
AN4-4A 12 Bolt 0.3
MS21044N4 12 Nut 0.3
MS35338-44 12 Lock Washer 0.08
Complete attaching kit includes all of above parts and reinforcements for wheel pants.

FOLLOWING PARTS ARE FOR ATTACHING PANTS TO STRAIGHT AXLE LANDING GEAR WITH MECHANICAL BRAKES
– MUST GET FIELD APPROVAL
2666-6 2 Tubes – Axle Mounting NM!
2670-3 1 Bracket – Left Inside Mount NM!
2670-4 1 Bracket – Right Inside Mount NM!
AN970-4 2 Washer 0.28
AN5-21A 2 Bolt 0.84
