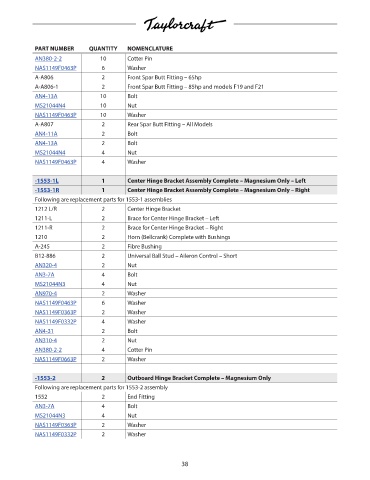

Page 42 - Taylorcraft Interactive Digital Parts Catalog

PART NUMBER QUANTITY NOMENCLATURE PRICE
AN380-2-2 10 Cotter Pin 0.04
NAS1149F0463P 6 Washer 0.06
A-A806 2 Front Spar Butt Fitting – 65hp NM!
A-A806-1 2 Front Spar Butt Fitting – 85hp and models F19 and F21 NM!
AN4-13A 10 Bolt 0.55
MS21044N4 10 Nut 0.3
NAS1149F0463P 10 Washer 0.06
A-A807 2 Rear Spar Butt Fitting – All Models NM!
AN4-11A 2 Bolt 0.32
AN4-13A 2 Bolt 0.55
MS21044N4 4 Nut 0.3
NAS1149F0463P 4 Washer 0.06

-1553-1L 1 Center Hinge Bracket Assembly Complete – Magnesium Only – Left 354.88
-1553-1R 1 Center Hinge Bracket Assembly Complete – Magnesium Only – Right 354.88
Following are replacement parts for 1553-1 assemblies
1212 L/R 2 Center Hinge Bracket NM!
1211-L 2 Brace for Center Hinge Bracket – Left NM!
1211-R 2 Brace for Center Hinge Bracket – Right NM!
1210 2 Horn (Bellcrank) Complete with Bushings NM!
A-245 2 Fibre Bushing NM!
B12-886 2 Universal Ball Stud – Aileron Control – Short NM!
AN320-4 2 Nut 1.44
AN3-7A 4 Bolt 0.52
MS21044N3 4 Nut 0.24
AN970-4 2 Washer 0.28
NAS1149F0463P 6 Washer 0.06
NAS1149F0363P 2 Washer 0.04
NAS1149F0332P 4 Washer 0.04
AN4-31 2 Bolt 1.6
AN310-4 2 Nut 1.6
AN380-2-2 4 Cotter Pin 0.04
NAS1149F0663P 2 Washer 0.11

-1553-2 2 Outboard Hinge Bracket Complete – Magnesium Only 680.89
Following are replacement parts for 1553-2 assembly
1552 2 End Fitting NM!
AN3-7A 4 Bolt 0.52
MS21044N3 4 Nut 0.24
NAS1149F0363P 2 Washer 0.04
NAS1149F0332P 2 Washer 0.04
