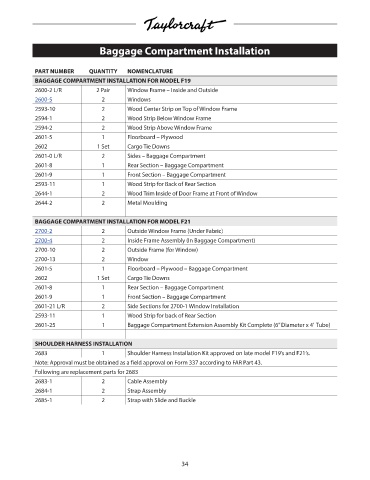

Baggage Compartment Installation

PART NUMBER QUANTITY NOMENCLATURE PRICE
BAGGAGE COMPARTMENT INSTALLATION FOR MODEL F19
2600-2 L/R 2 Pair Window Frame – Inside and Outside NM!
2600-5 2 Windows 5.6
2593-10 2 Wood Center Strip on Top of Window Frame NM!
2594-1 2 Wood Strip Below Window Frame NM!
2594-2 2 Wood Strip Above Window Frame NM!
2601-5 1 Floorboard – Plywood NM!
2602 1 Set Cargo Tie Downs NM!
2601-0 L/R 2 Sides – Baggage Compartment NM!
2601-8 1 Rear Section – Baggage Compartment NM!
2601-9 1 Front Section – Baggage Compartment NM!
2593-11 1 Wood Strip for Back of Rear Section NM!
2644-1 2 Wood Trim Inside of Door Frame at Front of Window NM!
2644-2 2 Metal Moulding NM!

BAGGAGE COMPARTMENT INSTALLATION FOR MODEL F21
2700-2 2 Outside Window Frame (Under Fabric) 5.52
2700-4 2 Inside Frame Assembly (In Baggage Compartment) 4.58
2700-10 2 Outside Frame (for Window) NM!
2700-13 2 Window NM!
2601-5 1 Floorboard – Plywood – Baggage Compartment NM!
2602 1 Set Cargo Tie Downs NM!
2601-8 1 Rear Section – Baggage Compartment NM!
2601-9 1 Front Section – Baggage Compartment NM!
2601-21 L/R 2 Side Sections for 2700-1 Window Installation NM!
2593-11 1 Wood Strip for back of Rear Section NM!
2601-25 1 Baggage Compartment Extension Assembly Kit Complete (6” Diameter x 4’ Tube) NM!

SHOULDER HARNESS INSTALLATION
2683 1 Shoulder Harness Installation Kit approved on late model F19’s and F21’s. NM!
Note: Approval must be obtained as a field approval on Form 337 according to FAR Part 43.
Following are replacement parts for 2683
2683-1 2 Cable Assembly NM!
2684-1 2 Strap Assembly NM!
2685-1 2 Strap with Slide and Buckle NM!

34
