Page 36 - Taylorcraft Interactive Digital Parts Catalog

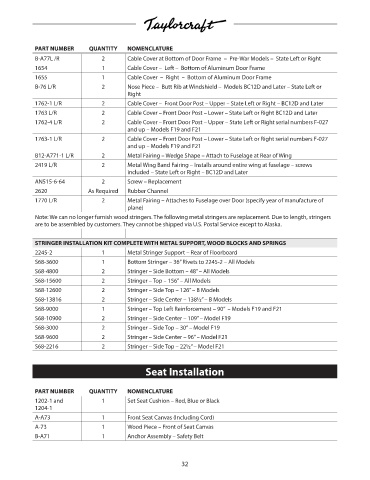

P. 36
PART NUMBER QUANTITY NOMENCLATURE PRICE
B-A77L /R 2 Cable Cover at Bottom of Door Frame – Pre-War Models – State Left or Right NM!
1654 1 Cable Cover – Left – Bottom of Aluminum Door Frame NM!
1655 1 Cable Cover – Right – Bottom of Aluminum Door Frame NM!
B-76 L/R 2 Nose Piece – Butt Rib at Windshield – Models BC12D and Later – State Left or NM!
Right
1762-1 L/R 2 Cable Cover – Front Door Post – Upper – State Left or Right – BC12D and Later NM!
1763 L/R 2 Cable Cover – Front Door Post – Lower – State Left or Right BC12D and Later NM!
1762-4 L/R 2 Cable Cover – Front Door Post – Upper – State Left or Right serial numbers F-027 NM!
and up – Models F19 and F21
1763-1 L/R 2 Cable Cover – Front Door Post – Lower – State Left or Right serial numbers F-027 NM!
and up – Models F19 and F21
B12-A771-1 L/R 2 Metal Fairing – Wedge Shape – Attach to Fuselage at Rear of Wing NM!
2419 L/R 2 Metal Wing Band Fairing – Installs around entire wing at fuselage – screws NM!
included – State Left or Right – BC12D and Later
AN515-6-64 2 Screw – Replacement NM!
2620 As Required Rubber Channel NM!
1770 L/R 2 Metal Fairing – Attaches to Fuselage over Door (specify year of manufacture of NM!
plane)
Note: We can no longer furnish wood stringers. The following metal stringers are replacement. Due to length, stringers
are to be assembled by customers. They cannot be shipped via U.S. Postal Service except to Alaska.
STRINGER INSTALLATION KIT COMPLETE WITH METAL SUPPORT, WOOD BLOCKS AND SPRINGS
2245-2 1 Metal Stringer Support – Rear of Floorboard NM!
S68-3600 1 Bottom Stringer – 36” Rivets to 2245-2 – All Models NM!
S68-4800 2 Stringer – Side Bottom – 48” – All Models NM!
S68-15600 2 Stringer – Top – 156” – All Models NM!
S68-12600 2 Stringer – Side Top – 126” – B Models NM!
S68-13816 2 Stringer – Side Center – 138½” – B Models NM!
S68-9000 1 Stringer – Top Left Reinforcement – 90” – Models F19 and F21 NM!
S68-10900 2 Stringer – Side Center – 109” – Model F19 NM!
S68-3000 2 Stringer – Side Top – 30” – Model F19 NM!
S68-9600 2 Stringer – Side Center – 96” – Model F21 NM!
S68-2216 2 Stringer – Side Top – 22½” – Model F21 NM!
Seat Installation
PART NUMBER QUANTITY NOMENCLATURE PRICE
1202-1 and 1 Set Seat Cushion – Red, Blue or Black NM!
1204-1
A-A73 1 Front Seat Canvas (Including Cord) NM!
A-73 1 Wood Piece – Front of Seat Canvas NM!
B-A71 1 Anchor Assembly – Safety Belt NM!
32
