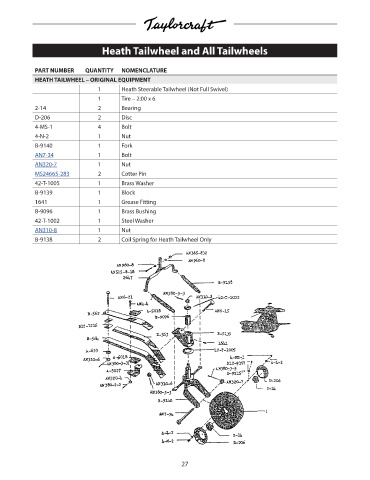

Page 31 - Taylorcraft Interactive Digital Parts Catalog

Heath Tailwheel and All Tailwheels

PART NUMBER QUANTITY NOMENCLATURE PRICE
HEATH TAILWHEEL – ORIGINAL EQUIPMENT
1 Heath Steerable Tailwheel (Not Full Swivel)
1 Tire – 2:00 x 6
2-14 2 Bearing NM!
D-206 2 Disc NM!
4-MS-1 4 Bolt NM!
4-N-2 1 Nut NM!
B-9140 1 Fork NM!
AN7-34 1 Bolt 3.9
AN320-7 1 Nut 3.22
MS24665-283 2 Cotter Pin 0.04
42-T-1005 1 Brass Washer NM!
B-9139 1 Block NM!
1641 1 Grease Fitting NM!
B-9096 1 Brass Bushing NM!
42-T-1002 1 Steel Washer NM!
AN310-8 1 Nut 3.9
B-9138 2 Coil Spring for Heath Tailwheel Only NM!

27
