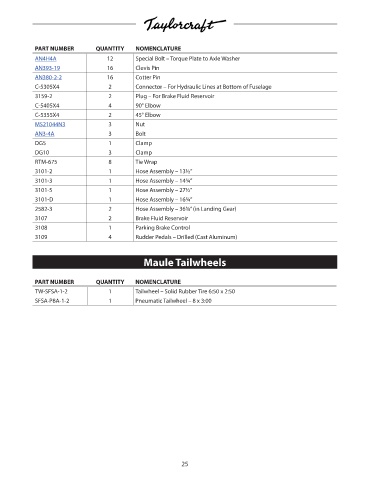

Page 29 - Taylorcraft Interactive Digital Parts Catalog

PART NUMBER QUANTITY NOMENCLATURE PRICE
AN4H4A 12 Special Bolt – Torque Plate to Axle Washer 0.56
AN393-19 16 Clevis Pin 0.92
AN380-2-2 16 Cotter Pin 0.04
C-5305X4 2 Connector – For Hydraulic Lines at Bottom of Fuselage NM!
3159-2 2 Plug – For Brake Fluid Reservoir NM!
C-5405X4 4 90° Elbow NM!
C-5355X4 2 45° Elbow NM!
MS21044N3 3 Nut 0.24
AN3-4A 3 Bolt 0.2
DG5 1 Clamp NM!
DG10 3 Clamp NM!
RTM-675 8 Tie Wrap NM!
3101-2 1 Hose Assembly – 13½” NM!
3101-3 1 Hose Assembly – 14¾” NM!
3101-5 1 Hose Assembly – 27½” NM!
3101-D 1 Hose Assembly – 16¾” NM!
2582-3 2 Hose Assembly – 36¾” (in Landing Gear) NM!
3107 2 Brake Fluid Reservoir NM!
3108 1 Parking Brake Control NM!
3109 4 Rudder Pedals – Drilled (Cast Aluminum) NM!

Maule Tailwheels

PART NUMBER QUANTITY NOMENCLATURE PRICE
TW-SFSA-1-2 1 Tailwheel – Solid Rubber Tire 6:50 x 2:50 NM!
SFSA-P8A-1-2 1 Pneumatic Tailwheel – 8 x 3:00 NM!

25
