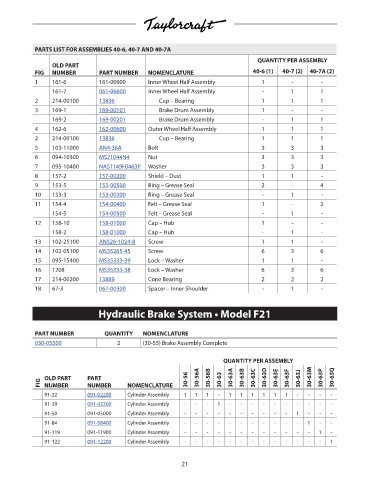

PARTS LIST FOR ASSEMBLIES 40-6, 40-7 AND 40-7A

QUANTITY PER ASSEMBLY
OLD PART
FIG NUMBER PART NUMBER NOMENCLATURE 40-6 (1) 40-7 (2) 40-7A (2) PRICE
1 161-6 161-00600 Inner Wheel Half Assembly 1 - - NM!
161-7 061-06600 Inner Wheel Half Assembly - 1 1 825.27
2 214-00100 13836 Cup – Bearing 1 1 1 36.98
3 169-1 169-00101 Brake Drum Assembly 1 - - 3991.71
169-2 169-00201 Brake Drum Assembly - 1 1 0
4 162-6 162-00600 Outer Wheel Half Assembly 1 1 1 1036.61
2 214-00100 13836 Cup – Bearing 1 1 1 36.98
5 103-11000 AN4-36A Bolt 3 3 3 0.88
6 094-10300 MS21044N4 Nut 3 3 3 0.3
7 095-10400 NAS1149F0463P Washer 3 3 3 0.06
8 157-2 157-00200 Shield – Dust 1 1 - 208.83
9 153-5 153-00500 Ring – Grease Seal 2 - 4 23.31
10 153-3 153-00300 Ring – Grease Seal - 1 - 17.06
11 154-4 154-00400 Felt – Grease Seal 1 - 2 27.87
154-5 154-00500 Felt – Grease Seal - 1 - 23.22
12 158-10 158-01000 Cap – Hub 1 - - 497.68
158-2 158-01000 Cap – Hub - 1 - 497.68
13 102-25100 AN526-1024-8 Screw 1 1 - 0.05
14 102-05100 MS35265-45 Screw 6 3 6 0.36
15 095-15400 MS35333-39 Lock – Washer 1 1 - 0.06
16 1208 MS35333-38 Lock – Washer 6 3 6 0.04
17 214-00200 13889 Cone Bearing 2 2 2 77.98
18 67-3 067-00300 Spacer – Inner Shoulder - 1 - 2330.46

Hydraulic Brake System • Model F21

PART NUMBER QUANTITY NOMENCLATURE PRICE
030-05500 2 (30-55) Brake Assembly Complete 1230.43

QUANTITY PER ASSEMBLY

OLD PART PART 30-56 30-56A 30-56B 30-63 30-63A 30-63B 30-63C 30-63D 30-63E 30-63F 30-63J 30-63M 30-63P 30-63Q PRICE
FIG NUMBER NUMBER NOMENCLATURE

91-22 091-02200 Cylinder Assembly 1 1 1 - 1 1 1 1 1 1 - - - - 915.84
91-39 091-02200 Cylinder Assembly - - - 1 - - - - - - - - - - 915.84
91-50 091-05000 Cylinder Assembly - - - - - - - - - - 1 - - - NM!
91-84 091-08400 Cylinder Assembly - - - - - - - - - - - 1 - - 0
91-119 091-11900 Cylinder Assembly - - - - - - - - - - - - 1 - NM!
91-122 091-12200 Cylinder Assembly - - - - - - - - - - - - - 1 0
