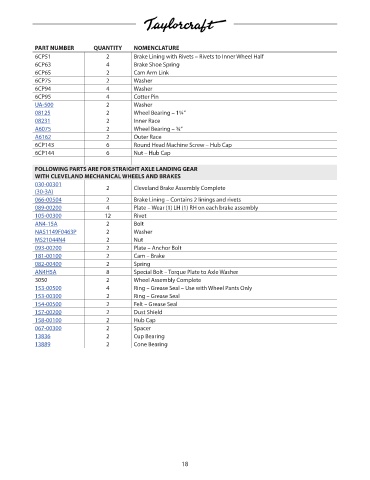

Page 22 - Taylorcraft Interactive Digital Parts Catalog

PART NUMBER QUANTITY NOMENCLATURE PRICE
6CP51 2 Brake Lining with Rivets – Rivets to Inner Wheel Half NM!
6CP63 4 Brake Shoe Spring NM!
6CP65 2 Cam Arm Link NM!
6CP75 2 Washer NM!
6CP94 4 Washer NM!
6CP95 4 Cotter Pin NM!
UA-500 2 Washer 11.06
08125 2 Wheel Bearing – 1¼” 49.98
08231 2 Inner Race 31.18
A6075 2 Wheel Bearing – ¾” 60.22
A6162 2 Outer Race 36.14
6CP143 6 Round Head Machine Screw – Hub Cap NM!
6CP144 6 Nut – Hub Cap NM!
x
FOLLOWING PARTS ARE FOR STRAIGHT AXLE LANDING GEAR
WITH CLEVELAND MECHANICAL WHEELS AND BRAKES
030-00301 2 Cleveland Brake Assembly Complete 0
(30-3A)
066-00504 2 Brake Lining – Contains 2 linings and rivets 85.05
089-00200 4 Plate – Wear (1) LH (1) RH on each brake assembly 0
105-00300 12 Rivet 1.45
AN4-15A 2 Bolt 0.44
NAS1149F0463P 2 Washer 0.06
MS21044N4 2 Nut 0.3
093-00200 2 Plate – Anchor Bolt 0
181-00100 2 Cam – Brake 1431.4
082-00400 2 Spring 51.57
AN4H5A 8 Special Bolt – Torque Plate to Axle Washer 1.39
3050 2 Wheel Assembly Complete NM!
153-00500 4 Ring – Grease Seal – Use with Wheel Pants Only 23.31
153-00300 2 Ring – Grease Seal 17.06
154-00500 2 Felt – Grease Seal 23.22
157-00200 2 Dust Shield 208.83
158-00100 2 Hub Cap 473.19
067-00300 2 Spacer 2330.46
13836 2 Cup Bearing 36.98
13889 2 Cone Bearing 77.98

18
