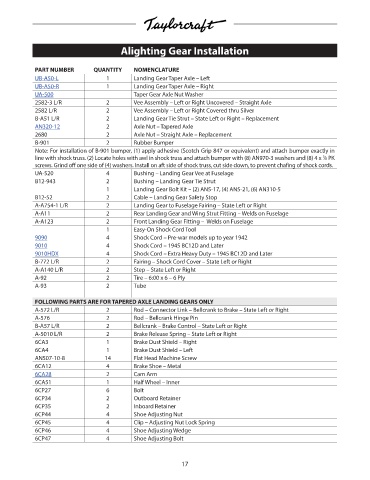

Alighting Gear Installation

PART NUMBER QUANTITY NOMENCLATURE PRICE
UB-A50-L 1 Landing Gear Taper Axle – Left 2530.52
UB-A50-R 1 Landing Gear Taper Axle – Right 2530.52
UA-500 Taper Gear Axle Nut Washer 11.06
2582-3 L/R 2 Vee Assembly – Left or Right Uncovered – Straight Axle NM!
2582 L/R 2 Vee Assembly – Left or Right Covered thru Silver NM!
B-A51 L/R 2 Landing Gear Tie Strut – State Left or Right – Replacement NM!
AN320-12 2 Axle Nut – Tapered Axle 5.14
2680 2 Axle Nut – Straight Axle – Replacement NM!
B-901 2 Rubber Bumper NM!
Note: For installation of B-901 bumper, (1) apply adhesive (Scotch Grip 847 or equivalent) and attach bumper exactly in
line with shock truss. (2) Locate holes with awl in shock truss and attach bumper with (8) AN970-3 washers and (8) 4 x ⁄8 PK
3
screws. Grind off one side of (4) washers. Install on aft side of shock truss, cut side down, to prevent chafing of shock cords.
UA-520 4 Bushing – Landing Gear Vee at Fuselage NM!
B12-943 2 Bushing – Landing Gear Tie Strut NM!
1 Landing Gear Bolt Kit – (2) AN5-17, (4) AN5-21, (6) AN310-5 x
B12-52 2 Cable – Landing Gear Safety Stop NM!
A-A754-1 L/R 2 Landing Gear to Fuselage Fairing – State Left or Right NM!
A-A11 2 Rear Landing Gear and Wing Strut Fitting – Welds on Fuselage NM!
A-A123 2 Front Landing Gear Fitting – Welds on Fuselage NM!
1 Easy-On Shock Cord Tool x
9090 4 Shock Cord – Pre-war models up to year 1942 26.14
9010 4 Shock Cord – 1945 BC12D and Later 59.42
9010HDX 4 Shock Cord – Extra Heavy Duty – 1945 BC12D and Later 33.54
B-772 L/R 2 Fairing – Shock Cord Cover – State Left or Right NM!
A-A140 L/R 2 Step – State Left or Right NM!
A-92 2 Tire – 6:00 x 6 – 6 Ply NM!
A-93 2 Tube NM!
x
FOLLOWING PARTS ARE FOR TAPERED AXLE LANDING GEARS ONLY
A-572 L/R 2 Rod – Connector Link – Bellcrank to Brake – State Left or Right NM!
A-576 2 Rod – Bellcrank Hinge Pin NM!
B-A57 L/R 2 Bellcrank – Brake Control – State Left or Right NM!
A-5010 L/R 2 Brake Release Spring – State Left or Right NM!
6CA3 1 Brake Dust Shield – Right NM!
6CA4 1 Brake Dust Shield – Left NM!
AN507-10-8 14 Flat Head Machine Screw NM!
6CA12 4 Brake Shoe – Metal NM!
6CA28 2 Cam Arm 56.37
6CA51 1 Half Wheel – Inner NM!
6CP27 6 Bolt NM!
6CP34 2 Outboard Retainer NM!
6CP35 2 Inboard Retainer NM!
6CP44 4 Shoe Adjusting Nut NM!
6CP45 4 Clip – Adjusting Nut Lock Spring NM!
6CP46 4 Shoe Adjusting Wedge NM!
6CP47 4 Shoe Adjusting Bolt NM!

17
