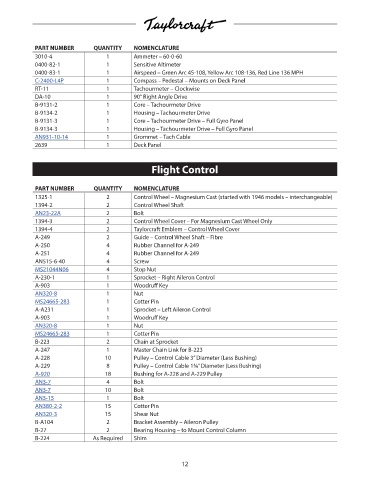

Page 16 - Taylorcraft Interactive Digital Parts Catalog
P. 16
PART NUMBER QUANTITY NOMENCLATURE PRICE
3010-4 1 Ammeter – 60-0-60 NM!
0400-82-1 1 Sensitive Altimeter NM!
0400-83-1 1 Airspeed – Green Arc 45-108, Yellow Arc 108-136, Red Line 136 MPH NM!
C-2400-L4P 1 Compass – Pedestal – Mounts on Deck Panel 299.14
RT-11 1 Tachourmeter – Clockwise NM!
DA-10 1 90° Right Angle Drive NM!
B-9131-2 1 Core – Tachourmeter Drive NM!
B-9134-2 1 Housing – Tachourmeter Drive NM!
B-9131-3 1 Core – Tachourmeter Drive – Full Gyro Panel NM!
B-9134-3 1 Housing – Tachourmeter Drive – Full Gyro Panel NM!
AN931-10-14 1 Grommet – Tach Cable 2
2639 1 Deck Panel NM!
Flight Control
PART NUMBER QUANTITY NOMENCLATURE PRICE
1325-1 2 Control Wheel – Magnesium Cast (started with 1946 models – interchangeable) NM!
1394-2 2 Control Wheel Shaft NM!
AN23-22A 2 Bolt 1
1394-3 2 Control Wheel Cover – For Magnesium Cast Wheel Only NM!
1394-4 2 Taylorcraft Emblem – Control Wheel Cover NM!
A-249 2 Guide – Control Wheel Shaft – Fibre NM!
A-250 4 Rubber Channel for A-249 NM!
A-251 4 Rubber Channel for A-249 NM!
AN515-6-40 4 Screw NM!
MS21044N06 4 Stop Nut 0.32
A-230-1 1 Sprocket – Right Aileron Control NM!
A-903 1 Woodruff Key NM!
AN320-8 1 Nut 2.44
MS24665-283 1 Cotter Pin 0.04
A-A231 1 Sprocket – Left Aileron Control NM!
A-903 1 Woodruff Key NM!
AN320-8 1 Nut 2.44
MS24665-283 1 Cotter Pin 0.04
B-223 2 Chain at Sprocket NM!
A-247 1 Master Chain Link for B-223 NM!
A-228 10 Pulley – Control Cable 3” Diameter (Less Bushing) NM!
A-229 8 Pulley – Control Cable 1¾” Diameter (Less Bushing) NM!
A-920 18 Bushing for A-228 and A-229 Pulley 7.03
AN3-7 4 Bolt 1
AN3-7 10 Bolt 1
AN3-15 1 Bolt 0.84
AN380-2-2 15 Cotter Pin 0.04
AN320-3 15 Shear Nut 1
B-A104 2 Bracket Assembly – Aileron Pulley NM!
B-27 2 Bearing Housing – to Mount Control Column NM!
B-224 As Required Shim NM!
