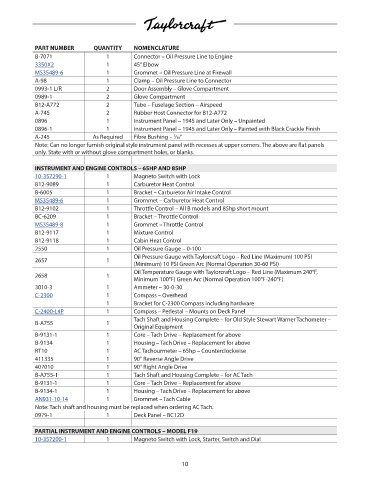

Page 14 - Taylorcraft Interactive Digital Parts Catalog

PART NUMBER QUANTITY NOMENCLATURE PRICE
B-7071 1 Connector – Oil Pressure Line to Engine NM!
3350X2 1 45° Elbow 4.85
MS35489-6 1 Grommet – Oil Pressure Line at Firewall 0.4
A-98 1 Clamp – Oil Pressure Line to Connector NM!
0993-1 L/R 2 Door Assembly – Glove Compartment NM!
0989-1 2 Glove Compartment NM!
B12-A772 2 Tube – Fuselage Section – Airspeed NM!
A-745 2 Rubber Host Connector for B12-A772 NM!
0896 1 Instrument Panel – 1945 and Later Only – Unpainted NM!
0896-1 1 Instrument Panel – 1945 and Later Only – Painted with Black Crackle Finish NM!
5
A-245 As Required Fibre Bushing – ⁄16” NM!
Note: Can no longer furnish original style instrument panel with recesses at upper corners. The above are flat panels
only. State with or without glove compartment holes, or blanks.
x
INSTRUMENT AND ENGINE CONTROLS – 65HP AND 85HP
10-357290-1 1 Magneto Switch with Lock 576.31
B12-9089 1 Carburetor Heat Control NM!
B-6005 1 Bracket – Carburetor Air Intake Control NM!
MS35489-6 1 Grommet – Carburetor Heat Control 0.4
B12-9102 1 Throttle Control – All B models and 85hp short mount NM!
BC-6209 1 Bracket – Throttle Control NM!
MS35489-8 1 Grommet – Throttle Control 2
B12-9117 1 Mixture Control NM!
B12-9118 1 Cabin Heat Control NM!
2550 1 Oil Pressure Gauge – 0-100 NM!
Oil Pressure Gauge with Taylorcraft Logo – Red Line (Maximum) 100 PSI
2657 1 NM!
(Minimum) 10 PSI Green Arc (Normal Operation 30-60 PSI)
Oil Temperature Gauge with Taylorcraft Logo – Red Line (Maximum 240°F,
2658 1 NM!
Minimum 100°F) Green Arc (Normal Operation 100°F-240°F)
3010-3 1 Ammeter – 30-0-30 NM!
C-2300 1 Compass – Overhead 238.25
1 Bracket for C-2300 Compass including hardware x
C-2400-L4P 1 Compass – Pedestal – Mounts on Deck Panel 299.14
Tach Shaft and Housing Complete – for Old Style Stewart Warner Tachometer –
B-A755 1 NM!
Original Equipment
B-9131-1 1 Core – Tach Drive – Replacement for above NM!
B-9134 1 Housing – Tach Drive – Replacement for above NM!
RT10 1 AC Tachourmeter – 65hp – Counterclockwise NM!
411335 1 90° Reverse Angle Drive NM!
407010 1 90° Right Angle Drive NM!
B-A755-1 1 Tach Shaft and Housing Complete – for AC Tach NM!
B-9131-1 1 Core – Tach Drive – Replacement for above NM!
B-9134-1 1 Housing – Tach Drive – Replacement for above NM!
AN931-10-14 1 Grommet – Tach Cable 2
Note: Tach shaft and housing must be replaced when ordering AC Tach.
0979-1 1 Deck Panel – BC12D NM!
x
PARTIAL INSTRUMENT AND ENGINE CONTROLS – MODEL F19
10-357200-1 1 Magneto Switch with Lock, Starter, Switch and Dial 642.72

10
