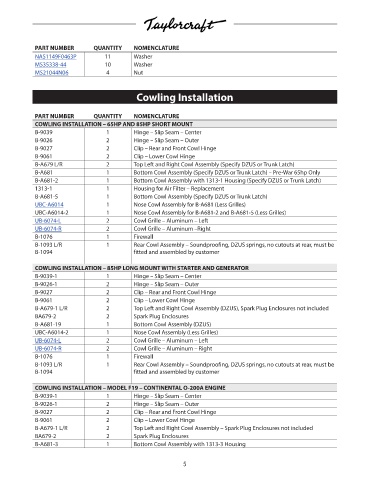

Page 9 - Taylorcraft Interactive Digital Parts Catalog

PART NUMBER QUANTITY NOMENCLATURE PRICE
NAS1149F0463P 11 Washer 0.06
MS35338-44 10 Washer 0.08
MS21044N06 4 Nut 0.32

Cowling Installation

PART NUMBER QUANTITY NOMENCLATURE PRICE
COWLING INSTALLATION – 65HP AND 85HP SHORT MOUNT
B-9039 1 Hinge – Slip Seam – Center NM!
B-9026 2 Hinge – Slip Seam – Outer NM!
B-9027 2 Clip – Rear and Front Cowl Hinge NM!
B-9061 2 Clip – Lower Cowl Hinge NM!
B-A679 L/R 2 Top Left and Right Cowl Assembly (Specify DZUS or Trunk Latch) NM!
B-A681 1 Bottom Cowl Assembly (Specify DZUS or Trunk Latch) – Pre-War 65hp Only NM!
B-A681-2 1 Bottom Cowl Assembly with 1313-1 Housing (Specify DZUS or Trunk Latch) NM!
1313-1 1 Housing for Air Filter – Replacement NM!
B-A681-5 1 Bottom Cowl Assembly (Specify DZUS or Trunk Latch) NM!
UBC-A6014 1 Nose Cowl Assembly for B-A681 (Less Grilles) 1360.61
UBC-A6014-2 1 Nose Cowl Assembly for B-A681-2 and B-A681-5 (Less Grilles) NM!
UB-6074-L 2 Cowl Grille – Aluminum – Left 95.86
UB-6074-R 2 Cowl Grille – Aluminum –Right 95.86
B-1076 1 Firewall NM!
B-1093 L/R 1 Rear Cowl Assembly – Soundproofing, DZUS springs, no cutouts at rear, must be NM!
B-1094 fitted and assembled by customer
x
COWLING INSTALLATION – 85HP LONG MOUNT WITH STARTER AND GENERATOR
B-9039-1 1 Hinge – Slip Seam – Center NM!
B-9026-1 2 Hinge – Slip Seam – Outer NM!
B-9027 2 Clip – Rear and Front Cowl Hinge NM!
B-9061 2 Clip – Lower Cowl Hinge NM!
B-A679-1 L/R 2 Top Left and Right Cowl Assembly (DZUS), Spark Plug Enclosures not included NM!
BA679-2 2 Spark Plug Enclosures NM!
B-A681-19 1 Bottom Cowl Assembly (DZUS) NM!
UBC-A6014-2 1 Nose Cowl Assembly (Less Grilles) NM!
UB-6074-L 2 Cowl Grille – Aluminum – Left 95.86
UB-6074-R 2 Cowl Grille – Aluminum – Right 95.86
B-1076 1 Firewall NM!
B-1093 L/R 1 Rear Cowl Assembly – Soundproofing, DZUS springs, no cutouts at rear, must be NM!
B-1094 fitted and assembled by customer
x
COWLING INSTALLATION – MODEL F19 – CONTINENTAL O-200A ENGINE
B-9039-1 1 Hinge – Slip Seam – Center NM!
B-9026-1 2 Hinge – Slip Seam – Outer NM!
B-9027 2 Clip – Rear and Front Cowl Hinge NM!
B-9061 2 Clip – Lower Cowl Hinge NM!
B-A679-1 L/R 2 Top Left and Right Cowl Assembly – Spark Plug Enclosures not included NM!
BA679-2 2 Spark Plug Enclosures NM!
B-A681-3 1 Bottom Cowl Assembly with 1313-3 Housing NM!

5
