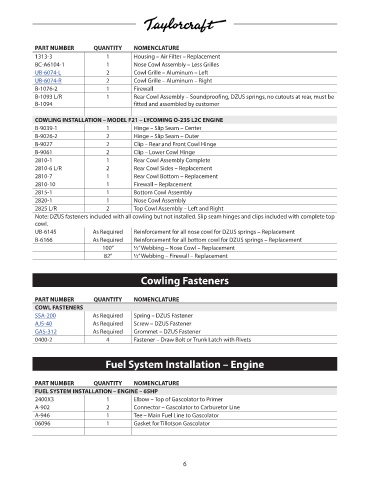

Page 10 - Taylorcraft Interactive Digital Parts Catalog

PART NUMBER QUANTITY NOMENCLATURE PRICE
1313-3 1 Housing – Air Filter – Replacement NM!
BC-A6104-1 1 Nose Cowl Assembly – Less Grilles NM!
UB-6074-L 2 Cowl Grille – Aluminum – Left 95.86
UB-6074-R 2 Cowl Grille – Aluminum – Right 95.86
B-1076-2 1 Firewall NM!
B-1093 L/R 1 Rear Cowl Assembly – Soundproofing, DZUS springs, no cutouts at rear, must be NM!
B-1094 fitted and assembled by customer
x
COWLING INSTALLATION – MODEL F21 – LYCOMING O-235 L2C ENGINE
B-9039-1 1 Hinge – Slip Seam – Center NM!
B-9026-2 2 Hinge – Slip Seam – Outer NM!
B-9027 2 Clip – Rear and Front Cowl Hinge NM!
B-9061 2 Clip – Lower Cowl Hinge NM!
2810-1 1 Rear Cowl Assembly Complete NM!
2810-6 L/R 2 Rear Cowl Sides – Replacement NM!
2810-7 1 Rear Cowl Bottom – Replacement NM!
2810-10 1 Firewall – Replacement NM!
2815-1 1 Bottom Cowl Assembly NM!
2820-1 1 Nose Cowl Assembly NM!
2825 L/R 2 Top Cowl Assembly – Left and Right NM!
Note: DZUS fasteners included with all cowling but not installed. Slip seam hinges and clips included with complete top
cowl.
UB-6145 As Required Reinforcement for all nose cowl for DZUS springs – Replacement NM!
B-6166 As Required Reinforcement for all bottom cowl for DZUS springs – Replacement NM!
100” ½” Webbing – Nose Cowl – Replacement x
82” ½” Webbing – Firewall – Replacement x

Cowling Fasteners

PART NUMBER QUANTITY NOMENCLATURE PRICE
COWL FASTENERS
S5A-200 As Required Spring – DZUS Fastener 2.13
AJ5-40 As Required Screw – DZUS Fastener 3.56
GA5-312 As Required Grommet – DZUS Fastener 3.43
0400-2 4 Fastener – Draw Bolt or Trunk Latch with Rivets NM!

Fuel System Installation – Engine

PART NUMBER QUANTITY NOMENCLATURE PRICE
FUEL SYSTEM INSTALLATION – ENGINE – 65HP
2400X3 1 Elbow – Top of Gascolator to Primer NM!
A-902 2 Connector – Gascolator to Carburetor Line NM!
A-946 1 Tee – Main Fuel Line to Gascolator NM!
06096 1 Gasket for Tillotson Gascolator NM!

6
