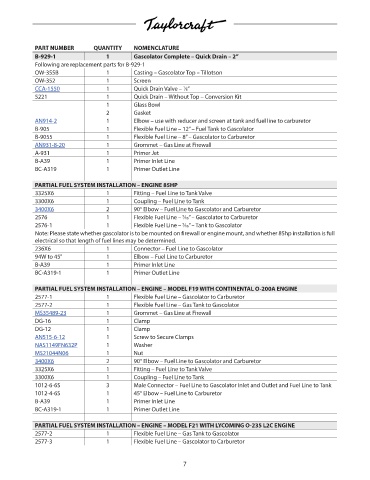

Page 11 - Taylorcraft Interactive Digital Parts Catalog

PART NUMBER QUANTITY NOMENCLATURE PRICE
B-929-1 1 Gascolator Complete – Quick Drain – 2” NM!
Following are replacement parts for B-929-1
OW-355B 1 Casting – Gascolator Top – Tillotson NM!
OW-352 1 Screen NM!
CCA-1550 1 Quick Drain Valve – ⁄8” 22.84
1
5221 1 Quick Drain – Without Top – Conversion Kit NM!
1 Glass Bowl x
2 Gasket x
AN914-2 1 Elbow – use with reducer and screen at tank and fuel line to carburetor 30
B-905 1 Flexible Fuel Line – 12” – Fuel Tank to Gascolator NM!
B-9055 1 Flexible Fuel Line – 8” – Gascolator to Carburetor NM!
AN931-8-20 1 Grommet – Gas Line at Firewall 4.51
A-931 1 Primer Jet NM!
B-A39 1 Primer Inlet Line NM!
BC-A319 1 Primer Outlet Line NM!
x
PARTIAL FUEL SYSTEM INSTALLATION – ENGINE 85HP
3325X6 1 Fitting – Fuel Line to Tank Valve NM!
3300X6 1 Coupling – Fuel Line to Tank NM!
3400X6 2 90° Elbow – Fuel Line to Gascolator and Carburetor 10.05
2576 1 Flexible Fuel Line – ⁄16” – Gascolator to Carburetor NM!
5
2576-1 1 Flexible Fuel Line – ⁄16” – Tank to Gascolator NM!
5
Note: Please state whether gascolator is to be mounted on firewall or engine mount, and whether 85hp installation is full
electrical so that length of fuel lines may be determined.
236X6 1 Connector – Fuel Line to Gascolator NM!
94W to 45° 1 Elbow – Fuel Line to Carburetor NM!
B-A39 1 Primer Inlet Line NM!
BC-A319-1 1 Primer Outlet Line NM!
x
PARTIAL FUEL SYSTEM INSTALLATION – ENGINE – MODEL F19 WITH CONTINENTAL O-200A ENGINE
2577-1 1 Flexible Fuel Line – Gascolator to Carburetor NM!
2577-2 1 Flexible Fuel Line – Gas Tank to Gascolator NM!
MS35489-23 1 Grommet – Gas Line at Firewall 1.34
DG-16 1 Clamp NM!
DG-12 1 Clamp NM!
AN515-6-12 1 Screw to Secure Clamps 1.14
NAS1149FN632P 1 Washer 0.06
MS21044N06 1 Nut 0.32
3400X6 2 90° Elbow – Fuel Line to Gascolator and Carburetor 10.05
3325X6 1 Fitting – Fuel Line to Tank Valve NM!
3300X6 1 Coupling – Fuel Line to Tank NM!
1012-6-6S 3 Male Connector – Fuel Line to Gascolator Inlet and Outlet and Fuel Line to Tank NM!
1012-4-6S 1 45° Elbow – Fuel Line to Carburetor NM!
B-A39 1 Primer Inlet Line NM!
BC-A319-1 1 Primer Outlet Line NM!
x
PARTIAL FUEL SYSTEM INSTALLATION – ENGINE – MODEL F21 WITH LYCOMING O-235 L2C ENGINE
2577-2 1 Flexible Fuel Line – Gas Tank to Gascolator NM!
2577-3 1 Flexible Fuel Line – Gascolator to Carburetor NM!
