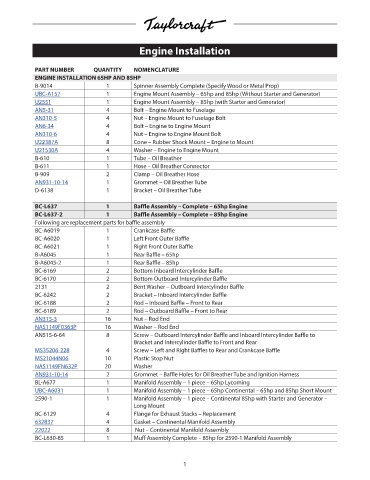

Engine Installation

PART NUMBER QUANTITY NOMENCLATURE PRICE
ENGINE INSTALLATION 65HP AND 85HP
B-9014 1 Spinner Assembly Complete (Specify Wood or Metal Prop) NM!
UBC-A157 1 Engine Mount Assembly – 65hp and 85hp (Without Starter and Generator) 1309.22
U2551 1 Engine Mount Assembly – 85hp (with Starter and Generator) 1405.8
AN5-31 4 Bolt – Engine Mount to Fuselage 1.3
AN310-5 4 Nut – Engine Mount to Fuselage Bolt 2
AN6-34 4 Bolt – Engine to Engine Mount 1.62
AN310-6 4 Nut – Engine to Engine Mount Bolt 1.8
U22387A 8 Cone – Rubber Shock Mount – Engine to Mount 6.56
U21530A 4 Washer – Engine to Engine Mount 7.84
B-610 1 Tube – Oil Breather NM!
B-611 1 Hose – Oil Breather Connector NM!
B-909 2 Clamp – Oil Breather Hose NM!
AN931-10-14 1 Grommet – Oil Breather Tube 2
D-6138 1 Bracket – Oil Breather Tube NM!

BC-L637 1 Baffle Assembly – Complete – 65hp Engine NM!
BC-L637-2 1 Baffle Assembly – Complete – 85hp Engine NM!
Following are replacement parts for baffle assembly
BC-A6019 1 Crankcase Baffle NM!
BC-A6020 1 Left Front Outer Baffle NM!
BC-A6021 1 Right Front Outer Baffle NM!
B-A6045 1 Rear Baffle – 65hp NM!
B-A6045-2 1 Rear Baffle – 85hp NM!
BC-6169 2 Bottom Inboard Intercylinder Baffle NM!
BC-6170 2 Bottom Outboard Intercylinder Baffle NM!
2131 2 Bent Washer – Outboard Intercylinder Baffle NM!
BC-6242 2 Bracket – Inboard Intercylinder Baffle NM!
BC-6188 2 Rod – Inboard Baffle – Front to Rear NM!
BC-6189 2 Rod – Outboard Baffle – Front to Rear NM!
AN315-3 16 Nut – Rod End 0.26
NAS1149F0363P 16 Washer – Rod End 0.04
AN515-6-64 8 Screw – Outboard Intercylinder Baffle and Inboard Intercylinder Baffle to NM!
Bracket and Intercylinder Baffle to Front and Rear
MS35206-228 4 Screw – Left and Right Baffles to Rear and Crankcase Baffle 0.09
MS21044N06 10 Plastic Stop Nut 0.32
NAS1149FN632P 20 Washer 0.06
AN931-10-14 2 Grommet – Baffle Holes for Oil Breather Tube and Ignition Harness 2
BL-A677 1 Manifold Assembly – 1 piece – 65hp Lycoming NM!
UBC-A6031 1 Manifold Assembly – 1 piece – 65hp Continental – 65hp and 85hp Short Mount 2384.9
2590-1 1 Manifold Assembly – 1 piece – Continental 85hp with Starter and Generator – NM!
Long Mount
BC-6129 4 Flange for Exhaust Stacks – Replacement NM!
632837 4 Gasket – Continental Manifold Assembly 3.28
22022 8 Nut – Continental Manifold Assembly 2.11
BC-L630-85 1 Muff Assembly Complete – 85hp for 2590-1 Manifold Assembly NM!
