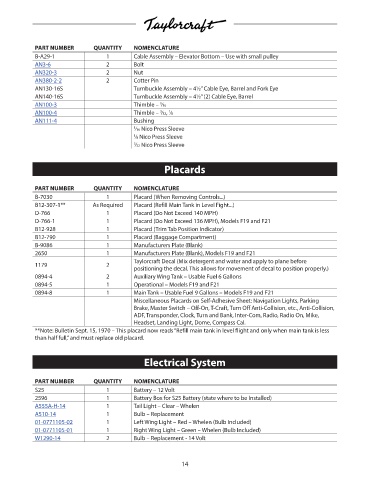

Page 18 - Taylorcraft Interactive Digital Parts Catalog

PART NUMBER QUANTITY NOMENCLATURE PRICE
B-A29-1 1 Cable Assembly – Elevator Bottom – Use with small pulley NM!
AN3-6 2 Bolt 0.52
AN320-3 2 Nut 1
AN380-2-2 2 Cotter Pin 0.04
AN130-16S Turnbuckle Assembly – 4½” Cable Eye, Barrel and Fork Eye NM!
AN140-16S Turnbuckle Assembly – 4½” (2) Cable Eye, Barrel NM!
AN100-3 Thimble – ⁄16 0.4
1
1
3
AN100-4 Thimble – ⁄32, ⁄8 0.34
AN111-4 Bushing 4.85
1 ⁄16 Nico Press Sleeve x
1 ⁄8 Nico Press Sleeve x
3 ⁄32 Nico Press Sleeve x

Placards

PART NUMBER QUANTITY NOMENCLATURE PRICE
B-7030 1 Placard (When Removing Controls...) NM!
B12-307-1** As Required Placard (Refill Main Tank in Level Fight...) NM!
D-766 1 Placard (Do Not Exceed 140 MPH) NM!
D-766-1 1 Placard (Do Not Exceed 136 MPH), Models F19 and F21 NM!
B12-928 1 Placard (Trim Tab Position Indicator) NM!
B12-790 1 Placard (Baggage Compartment) NM!
B-9086 1 Manufacturers Plate (Blank) NM!
2650 1 Manufacturers Plate (Blank), Models F19 and F21 NM!
Taylorcraft Decal (Mix detergent and water and apply to plane before
1179 2 NM!
positioning the decal. This allows for movement of decal to position properly.)
0894-4 2 Auxiliary Wing Tank – Usable Fuel 6 Gallons NM!
0894-5 1 Operational – Models F19 and F21 NM!
0894-8 1 Main Tank – Usable Fuel 9 Gallons – Models F19 and F21 NM!
Miscellaneous Placards on Self-Adhesive Sheet: Navigation Lights, Parking
Brake, Master Switch – Off-On, T-Craft, Turn Off Anti-Collision, etc., Anti-Collision,
ADF, Transponder, Clock, Turn and Bank, Inter-Com, Radio, Radio On, Mike,
Headset, Landing Light, Dome, Compass Cal.
**Note: Bulletin Sept. 15, 1970 – This placard now reads “Refill main tank in level flight and only when main tank is less
than half full,” and must replace old placard.

Electrical System

PART NUMBER QUANTITY NOMENCLATURE PRICE
S25 1 Battery – 12 Volt NM!
2596 1 Battery Box for S25 Battery (state where to be Installed) NM!
A555A-H-14 1 Tail Light – Clear – Whelen 257.4
A510-14 1 Bulb – Replacement 45.24
01-0771105-02 1 Left Wing Light – Red – Whelen (Bulb Included) 311.22
01-0771105-01 1 Right Wing Light – Green – Whelen (Bulb Included) 311.22
W1290-14 2 Bulb – Replacement - 14 Volt 95.16

14
