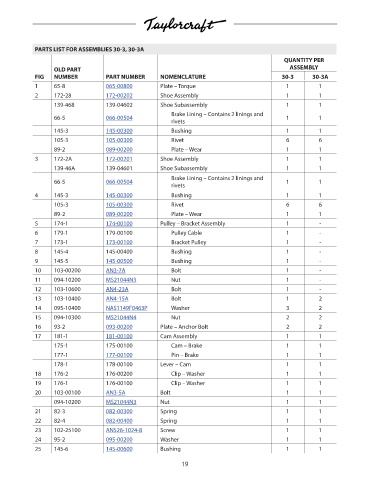

PARTS LIST FOR ASSEMBLIES 30-3, 30-3A

QUANTITY PER
OLD PART ASSEMBLY
FIG NUMBER PART NUMBER NOMENCLATURE 30-3 30-3A PRICE
1 65-8 065-00800 Plate – Torque 1 1 3371.5
2 172-28 172-00202 Shoe Assembly 1 1 3465.49
139-468 139-04602 Shoe Subassembly 1 1 NM!
Brake Lining – Contains 2 linings and
66-5 066-00504 1 1 85.05
rivets
145-3 145-00300 Bushing 1 1 0
105-3 105-00300 Rivet 6 6 1.45
89-2 089-00200 Plate – Wear 1 1 0
3 172-2A 172-00201 Shoe Assembly 1 1 3258.33
139-46A 139-04601 Shoe Subassembly 1 1 NM!
Brake Lining – Contains 2 linings and
66-5 066-00504 1 1 85.05
rivets
4 145-3 145-00300 Bushing 1 1 0
105-3 105-00300 Rivet 6 6 1.45
89-2 089-00200 Plate – Wear 1 1 0
5 174-1 174-00100 Pulley – Bracket Assembly 1 - 0
6 179-1 179-00100 Pulley Cable 1 - NM!
7 173-1 173-00100 Bracket Pulley 1 - 108.98
8 145-4 145-00400 Bushing 1 - NM!
9 145-5 145-00500 Bushing 1 - 17.49
10 103-00200 AN3-7A Bolt 1 - 0.52
11 094-10200 MS21044N3 Nut 1 - 0.24
12 103-10600 AN4-23A Bolt 1 - 1
13 103-10400 AN4-15A Bolt 1 2 0.44
14 095-10400 NAS1149F0463P Washer 3 2 0.06
15 094-10300 MS21044N4 Nut 2 2 0.3
16 93-2 093-00200 Plate – Anchor Bolt 2 2 0
17 181-1 181-00100 Cam Assembly 1 1 1431.4
175-1 175-00100 Cam – Brake 1 1 NM!
177-1 177-00100 Pin – Brake 1 1 0
178-1 178-00100 Lever – Cam 1 1 NM!
18 176-2 176-00200 Clip – Washer 1 1 NM!
19 176-1 176-00100 Clip – Washer 1 1 NM!
20 103-00100 AN3-5A Bolt 1 1 0.16
094-10200 MS21044N3 Nut 1 1 0.24
21 82-3 082-00300 Spring 1 1 78.2
22 82-4 082-00400 Spring 1 1 51.57
23 102-25100 AN526-1024-8 Screw 1 1 0.05
24 95-2 095-00200 Washer 1 1 10.07
25 145-6 145-00600 Bushing 1 1 0

19
