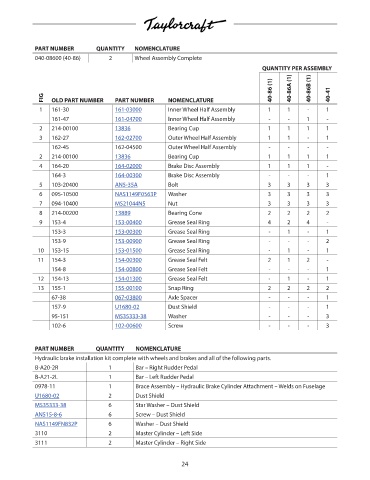

Page 28 - Taylorcraft Interactive Digital Parts Catalog

PART NUMBER QUANTITY NOMENCLATURE PRICE
040-08600 (40-86) 2 Wheel Assembly Complete NM!
QUANTITY PER ASSEMBLY

40-86 (1) 40-86A (1) 40-86B (1)

FIG OLD PART NUMBER PART NUMBER NOMENCLATURE 40-41 PRICE

1 161-30 161-03000 Inner Wheel Half Assembly 1 1 - 1 486.38
161-47 161-04700 Inner Wheel Half Assembly - - 1 - 521.4
2 214-00100 13836 Bearing Cup 1 1 1 1 36.98
3 162-27 162-02700 Outer Wheel Half Assembly 1 1 - 1 642.94
162-45 162-04500 Outer Wheel Half Assembly - - - - NM!
2 214-00100 13836 Bearing Cup 1 1 1 1 36.98
4 164-20 164-02000 Brake Disc Assembly 1 1 1 - 171.63
164-3 164-00300 Brake Disc Assembly - - - 1 286.59
5 103-20400 AN5-35A Bolt 3 3 3 3 1.56
6 095-10500 NAS1149F0563P Washer 3 3 3 3 0.08
7 094-10400 MS21044N5 Nut 3 3 3 3 0.4
8 214-00200 13889 Bearing Cone 2 2 2 2 77.98
9 153-4 153-00400 Grease Seal Ring 4 2 4 - 17.98
153-3 153-00300 Grease Seal Ring - 1 - 1 17.06
153-9 153-00900 Grease Seal Ring - - - 2 23.03
10 153-15 153-01500 Grease Seal Ring - 1 - 1 24.87
11 154-3 154-00300 Grease Seal Felt 2 1 2 - 4.9
154-8 154-00800 Grease Seal Felt - - - 1 22.65
12 154-13 154-01300 Grease Seal Felt - 1 - 1 13.07
13 155-1 155-00100 Snap Ring 2 2 2 2 13.31
67-38 067-03800 Axle Spacer - - - 1 576.17
157-9 U1680-02 Dust Shield - - - 1 33.99
95-151 MS35333-38 Washer - - - 3 0.04
102-6 102-00600 Screw - - - 3 7.55

PART NUMBER QUANTITY NOMENCLATURE PRICE
Hydraulic brake installation kit complete with wheels and brakes and all of the following parts.
B-A20-2R 1 Bar – Right Rudder Pedal NM!
B-A21-2L 1 Bar – Left Rudder Pedal NM!
0978-11 1 Brace Assembly – Hydraulic Brake Cylinder Attachment – Welds on Fuselage NM!
U1680-02 2 Dust Shield 33.99
MS35333-38 6 Star Washer – Dust Shield 0.04
AN515-8-6 6 Screw – Dust Shield 0.15
NAS1149FN832P 6 Washer – Dust Shield 0.04
3110 2 Master Cylinder – Left Side NM!
3111 2 Master Cylinder – Right Side NM!
