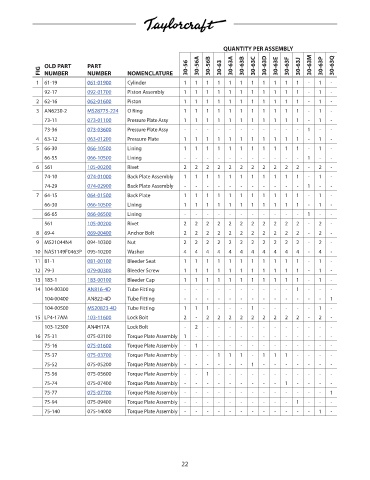

Page 26 - Taylorcraft Interactive Digital Parts Catalog

QUANTITY PER ASSEMBLY

OLD PART PART 30-56 30-56A 30-56B 30-63 30-63A 30-63B 30-63C 30-63D 30-63E 30-63F 30-63J 30-63M 30-63P 30-63Q PRICE
FIG NUMBER NUMBER NOMENCLATURE
1 61-19 061-01900 Cylinder 1 1 1 1 1 1 1 1 1 1 1 - 1 - 468.41
92-17 092-01700 Piston Assembly 1 1 1 1 1 1 1 1 1 1 1 - 1 - 125.81
2 62-16 062-01600 Piston 1 1 1 1 1 1 1 1 1 1 1 - 1 - 101.9
3 AN6230-2 MS28775-224 O Ring 1 1 1 1 1 1 1 1 1 1 1 - 1 - 1.18
73-11 073-01100 Pressure Plate Assy 1 1 1 1 1 1 1 1 1 1 1 - 1 - 158.8
73-36 073-03600 Pressure Plate Assy - - - - - - - - - - - 1 - - 0
4 63-12 063-01200 Pressure Plate 1 1 1 1 1 1 1 1 1 1 1 - 1 - 120.83
5 66-30 066-10500 Lining 1 1 1 1 1 1 1 1 1 1 1 - 1 - 16.44
66-55 066-10500 Lining - - - - - - - - - - - 1 - - 16.44
6 561 105-00200 Rivet 2 2 2 2 2 2 2 2 2 2 2 - 2 - 0.84
74-10 074-01000 Back Plate Assembly 1 1 1 1 1 1 1 1 1 1 1 - 1 - 242.79
74-29 074-02900 Back Plate Assembly - - - - - - - - - - - 1 - - 275.97
7 64-15 064-01500 Back Plate 1 1 1 1 1 1 1 1 1 1 1 - 1 - 168.17
66-30 066-10500 Lining 1 1 1 1 1 1 1 1 1 1 1 - 1 - 16.44
66-65 066-06500 Lining - - - - - - - - - - - 1 - - 31.35
561 105-00200 Rivet 2 2 2 2 2 2 2 2 2 2 2 - 2 - 0.84
8 69-4 069-00400 Anchor Bolt 2 2 2 2 2 2 2 2 2 2 2 - 2 - 47.02
9 MS21044N4 094-10300 Nut 2 2 2 2 2 2 2 2 2 2 2 - 2 - NM!
10 NAS1149F0463P 095-10200 Washer 4 4 4 4 4 4 4 4 4 4 4 - 4 - NM!
11 81-1 081-00100 Bleeder Seat 1 1 1 1 1 1 1 1 1 1 1 - 1 - 26.5
12 79-3 079-00300 Bleeder Screw 1 1 1 1 1 1 1 1 1 1 1 - 1 - 19.43
13 183-1 183-00100 Bleeder Cap 1 1 1 1 1 1 1 1 1 1 1 - 1 - 5.65
14 104-00300 AN816-4D Tube Fitting - - - - - - - - - - 1 - - - 5
104-00400 AN822-4D Tube Fitting - - - - - - - - - - - - - 1 NM!
104-00500 MS20823-4D Tube Fitting 1 1 1 - - - 1 - - - - - 1 - 5.4
15 LP4-17AM 103-11600 Lock Bolt 2 - 2 2 2 2 2 2 2 2 2 - 2 - 6.44
103-12300 AN4H17A Lock Bolt - 2 - - - - - - - - - - - - NM!
16 75-31 075-03100 Torque Plate Assembly 1 - - - - - - - - - - - - - NM!
75-16 075-01600 Torque Plate Assembly - 1 - - - - - - - - - - - - 467.52
75-37 075-03700 Torque Plate Assembly - - - 1 1 1 - 1 1 1 - - - - 315.29
75-52 075-05200 Torque Plate Assembly - - - - - - 1 - - - - - - - NM!
75-56 075-05600 Torque Plate Assembly - - 1 - - - - - - - - - - - NM!
75-74 075-07400 Torque Plate Assembly - - - - - - - - - 1 - - - - NM!
75-77 075-07700 Torque Plate Assembly - - - - - - - - - - - - - 1 857.77
75-94 075-09400 Torque Plate Assembly - - - - - - - - - - 1 - - - NM!
75-140 075-14000 Torque Plate Assembly - - - - - - - - - - - - 1 - NM!
