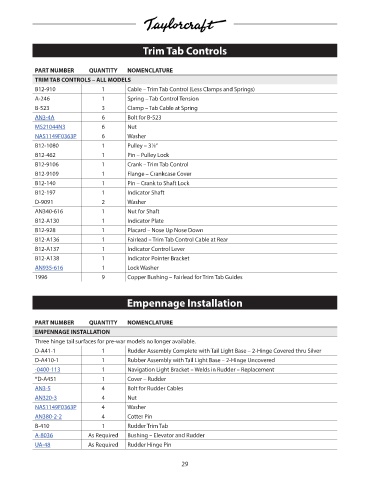

Page 33 - Taylorcraft Interactive Digital Parts Catalog

Trim Tab Controls

PART NUMBER QUANTITY NOMENCLATURE PRICE
TRIM TAB CONTROLS – ALL MODELS
B12-910 1 Cable – Trim Tab Control (Less Clamps and Springs) NM!
A-246 1 Spring – Tab Control Tension NM!
B-523 3 Clamp – Tab Cable at Spring NM!
AN3-4A 6 Bolt for B-523 0.2
MS21044N3 6 Nut 0.24
NAS1149F0363P 6 Washer 0.04
B12-1080 1 Pulley – 3 ⁄8” NM!
1
B12-462 1 Pin – Pulley Lock NM!
B12-9106 1 Crank – Trim Tab Control NM!
B12-9109 1 Flange – Crankcase Cover NM!
B12-140 1 Pin – Crank to Shaft Lock NM!
B12-197 1 Indicator Shaft NM!
D-9091 2 Washer NM!
AN340-616 1 Nut for Shaft NM!
B12-A130 1 Indicator Plate NM!
B12-928 1 Placard – Nose Up Nose Down NM!
B12-A136 1 Fairlead – Trim Tab Control Cable at Rear NM!
B12-A137 1 Indicator Control Lever NM!
B12-A138 1 Indicator Pointer Bracket NM!
AN935-616 1 Lock Washer 0.21
1996 9 Copper Bushing – Fairlead for Trim Tab Guides NM!

Empennage Installation

PART NUMBER QUANTITY NOMENCLATURE PRICE
EMPENNAGE INSTALLATION
Three hinge tail surfaces for pre-war models no longer available.
D-A41-1 1 Rudder Assembly Complete with Tail Light Base – 2-Hinge Covered thru Silver NM!
D-A410-1 1 Rubber Assembly with Tail Light Base – 2-Hinge Uncovered NM!
-0400-113 1 Navigation Light Bracket – Welds in Rudder – Replacement 35.31
*D-A451 1 Cover – Rudder NM!
AN3-5 4 Bolt for Rudder Cables 0.6
AN320-3 4 Nut 1
NAS1149F0363P 4 Washer 0.04
AN380-2-2 4 Cotter Pin 0.04
B-410 1 Rudder Trim Tab NM!
A-8036 As Required Bushing – Elevator and Rudder 2.67
UA-48 As Required Rudder Hinge Pin 29.97

29
